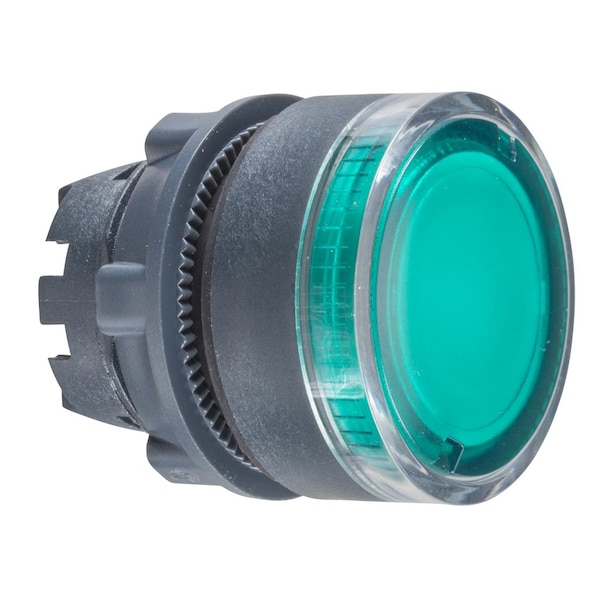

Cabeza para botón de presión iluminado, Harmony XB5, plástico, verde empotrado, 22mm, LED universal, retorno por resorte, lente estriada.
| Type of Operator | spring return |
|---|---|
| Item | Green flush illuminated pushbutton head |
| Bezel Material | dark grey plastic |
| Width | 29 mm |
| Standards | UL 508, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, GB 14048.5, CSA C22.2 No 14, JIS C8201-1 |
| Height | 29 mm |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Ik Degree of Protection | IK05 conforming to EN 50102 |
| Group of Product | flush push integral LED |
| Ambient Air Temperature For Operation | -40-70°C |
| Environmental Characteristic | high ambient lighting environment |
| Shape of Signaling Unit Head | round |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Overvoltage Category | class II IEC 60536 |
| Cap/Operator or Lens Colour | green |
| Ambient Air Temperature For Storage | -40-70°C |
| Device Presentation | basic sub-assemblies |
| Marking | unmarked |
| Mounting Diameter | 22 mm |
| Protective Treatment | TC |
| Device Short Name | ZB5 |
| Nema Degree of Protection | NEMA 13, NEMA 4X |
| Main Group | push-button |
| Product or Component Type | head for illuminated push-button |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Operator Profile | green flush, unmarked |
| Mechanical Durability | 10,000,000 cycle |
| Electrical Composition Code | M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED |
| Range of Product | Harmony XB5 |
| Station Name | XALD 1...5 cut-outs, XALK 2...5 cut-outs |
| Operator Additional Information | with grooved lens |
| Head Type | Standard |
| Product Compatibility | universal LED |
| Ip Degree of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Package Quantity | 1 |
