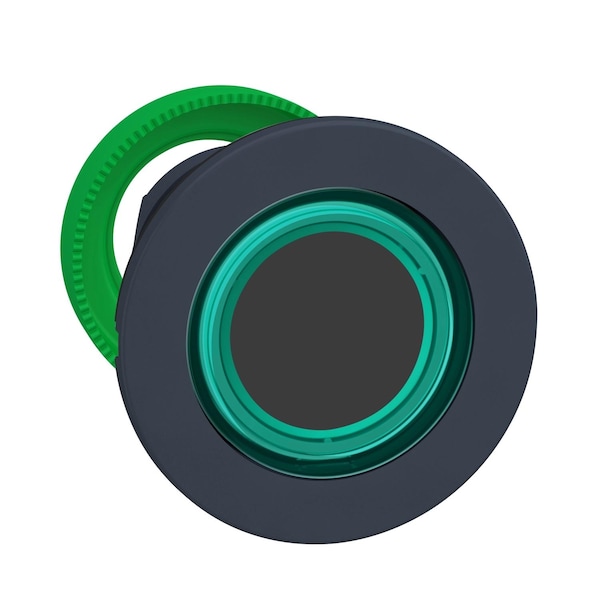

Cabeza para botón de presión iluminado, Harmony XB5, plástico, verde empotrable, 30mm, LED universal, anillo iluminado.
| Item | Flush mounted green flush caps illuminat |
|---|---|
| Bezel Material | dark grey plastic |
| Standards | UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || GB 14048.5 || CSA C22.2 No 14 || JIS C8201-1 |
| Marking | unmarked |
| Cap/Operator Or Lens Colour | green |
| Product Compatibility | universal LED |
| Operator Profile | green flush, unmarked |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 |
| Mechanical Durability | 10,000,000 cycle |
| Electrical Composition Code | M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED |
| Ik Degree Of Protection | IK03 EN 50102 |
| Cad Overall Height | 37 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Cad Overall Depth | 30 mm |
| Product Or Component Type | head for illuminated push-button |
| Group Of Product | flush push with ring illum LED |
| Shape Of Signaling Unit Head | round |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Protective Treatment | TC |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Overvoltage Category | class II IEC 60536 |
| Head Type | built-in, flush |
| Device Short Name | ZB5 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Mounting Diameter | 30.5 mm |
| Operator Additional Information | with illuminated ring |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Type Of Operator | spring return |
| Product Certifications | UL Listed, GL || BV || LROS || CSA || DNV |
| Main Group | illum push-button |
| Ambient Air Temperature For Operation | -40-70°C |
| Cad Overall Width | 37 mm |
| Range of Product | Harmony XB5 |
| Package Quantity | 1 |
