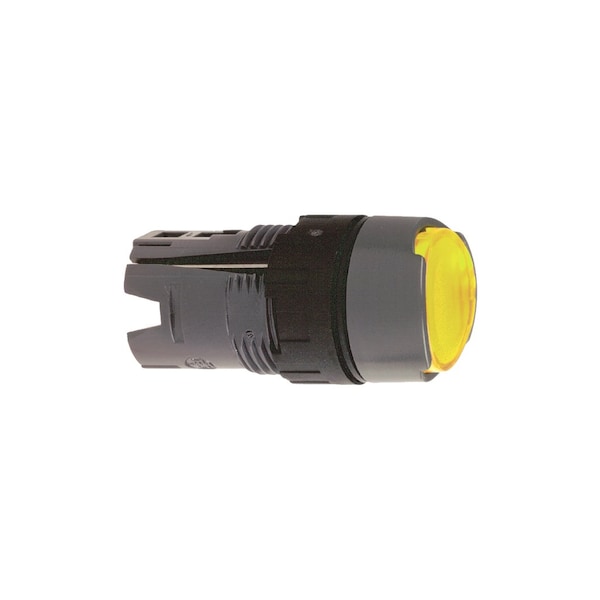

Cabezal para botón pulsador iluminado, Harmony XB6, amarillo de bajo perfil, 16mm, LED integrado, retorno por resorte, 12...24V, sin marcar
| Item | Push Button |
|---|---|
| Bezel Material | Plastic |
| Terminal Connection | Screw Clamp, Plug-in |
| Series | XB4 |
| Standards | Bureau Veritas, CSA C22.2 No.14, DNV, GL, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, LROS, UL 508 |
| IP Rating | IP65 |
| Nema Degree Of Protection | NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94 || NEMA 13 CSA C22.2 No 94 |
| Protective Treatment | TC |
| Product Or Component Type | head for illuminated push-button |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Cad Overall Depth | 33 mm |
| Cad Overall Height | 18 mm |
| Device Short Name | ZB6 |
| Shape Of Signaling Unit Head | round |
| Product Certifications | CCC || UL || CSA || GOST |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -25-70°C |
| Type Of Operator | spring return |
| Electrical Shock Protection Class | class II IEC 61140 |
| Product Compatibility | integral LED |
| Mounting Diameter | 16 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Cad Overall Width | 18 mm |
| Operator Profile | yellow flush, unmarked |
| Range of Product | Harmony XB6 |
| Mushroom Head Diameter | Not Applicable |
| Operator Illumination | Illuminated |
| Product Type | Push Button Operators |
| Operating Temperature - Minimum | -13 deg F |
| Manufacturer Warranty Length | 18 mo |
| NEMA Enclosure Rating | 4, 13, 4X |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Panel Cutout Diameter | 16 mm |
| Operating Temperature - Maximum | 158 deg F |
| Push Button Style | Flush |
| Head Color | Yellow |
| Package Quantity | 1 |
