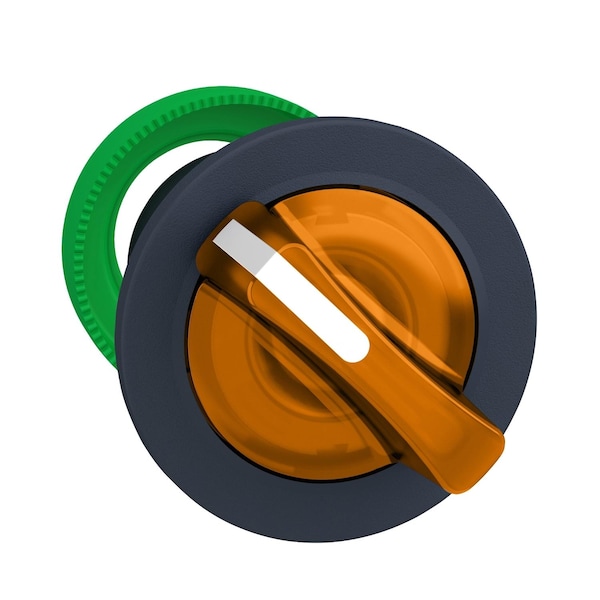

Cabeza para interruptor selector iluminado, Harmony XB5, plástico, mango naranja, LED universal, 2 posiciones, fijo.
| Item | Selector Switch Illum Orange 2 Pos |
|---|---|
| Height | 37 mm |
| Width | 37 mm |
| Standards | UL 508, EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C8201-5-1, EN/IEC 60947-1, JIS C8201-1 |
| Bezel Material | dark grey plastic |
| Type of Operator | stay put |
| Range of Product | Harmony XB5 |
| Ik Degree of Protection | IK03 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70°C |
| Operator Position Information | 2 positions 90° |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Mechanical Durability | 1,000,000 cycle |
| Ip Degree of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Shape of Signaling Unit Head | round |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Product or Component Type | head for illuminated selector switch |
| Electrical Composition Code | M3 4 single front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, M4 4 single and double front mounting integral LED |
| Product Compatibility | universal LED |
| Device Short Name | ZB5 |
| Mounting Diameter | 30.5 mm |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Ambient Air Temperature For Storage | -40-70°C |
| Operator Profile | standard handle |
| Protective Treatment | TH |
| Overvoltage Category | class II IEC 60536 |
| Head Type | built-in, flush |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Device Presentation | basic element |
| Product Certifications | CSA || DNV || UL Listed || LROS (Lloyds register of shipping) || GL || BV |
| Cad Overall Width | 37 mm |
| Cad Overall Height | 37 mm |
| Cad Overall Depth | 46 mm |
| Package Quantity | 1 |
