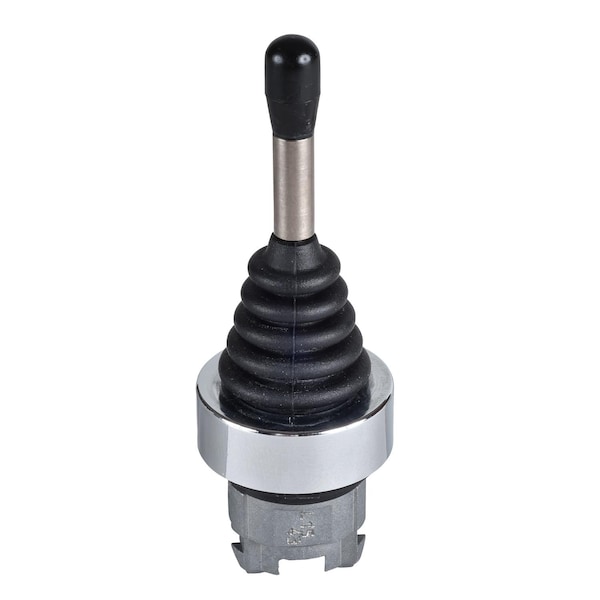

Cabezal para controlador de joystick, Harmony XB4, de metal negro, 22mm, 4 direcciones, se queda en su lugar.
| Item | Joystick controller head 022 4-direction |
|---|---|
| Standards | JIS C8201-5-1, EN/IEC 60947-5-5, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Range of Product | Harmony XB4 |
| Operator Direction Information | 4 directions |
| Ambient Air Temperature For Storage | -40-70°C |
| Electrical Shock Protection Class | class I IEC 60536 |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Operator Position Information | 5 positions |
| Ambient Air Temperature For Operation | -25-70°C |
| Protective Treatment | TH |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Device Presentation | basic element |
| Product or Component Type | head for joystick controller |
| Bezel Material | chromium plated metal |
| Operator Profile | 54 mm (long operating shaft) |
| Ik Degree of Protection | IK03 IEC 50102 |
| Type of Operator | stay put |
| Device Short Name | ZB4 |
| Mounting Diameter | 22 mm |
| Shape of Signaling Unit Head | round |
| Ip Degree of Protection | IP66 IEC 60529 |
| Mechanical Durability | 1,000,000 cycle |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Product Certifications | UL Listed || DNV || LROS (Lloyds register of shipping) || GL || CSA || BV |
| Package Quantity | 1 |
