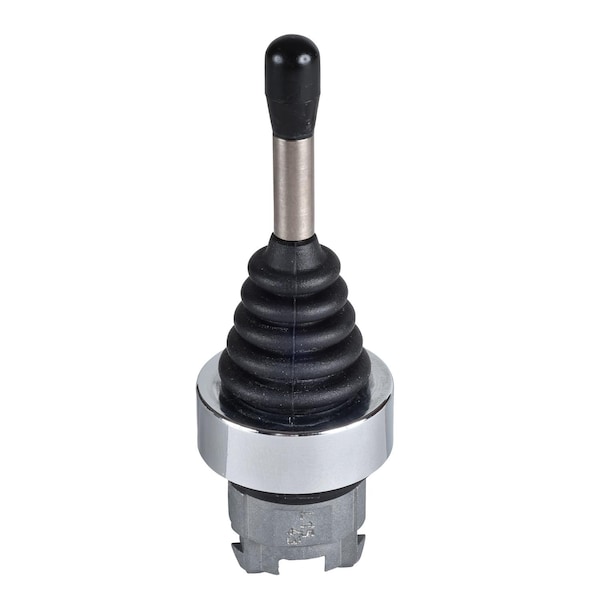

Cabeza para controlador de joystick, Harmony XB4, plástico, 22mm, 2 direcciones, retorno por resorte
| Item | Replacement Joystick Handle |
|---|---|
| Standards | IEC 60947-5-5, IEC 60947-1, UL 508, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-1 |
| Type of Operator | to spring return |
| Bezel Material | chromium plated metal |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree of Protection | IP66 IEC 60529 |
| Ik Degree of Protection | IK03 IEC 50102 |
| Product or Component Type | head for joystick controller |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Device Presentation | basic element |
| Ambient Air Temperature For Storage | -40-70°C |
| Operator Profile | 54 mm long operating shaft |
| Protective Treatment | TH |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Device Short Name | ZB4 |
| Ambient Air Temperature For Operation | -25-70°C |
| Range of Product | Harmony XB4 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Mounting Diameter | 22 mm |
| Operator Position Information | 3 positions |
| Mechanical Durability | 1,000,000 cycle |
| Shape of Signaling Unit Head | round |
| Operator Direction Information | 2 directions |
| Electrical Shock Protection Class | class I IEC 60536 |
| Product Certifications | DNV || UL Listed || BV || LROS (Lloyds register of shipping) || CSA || GL |
| Package Quantity | 1 |
