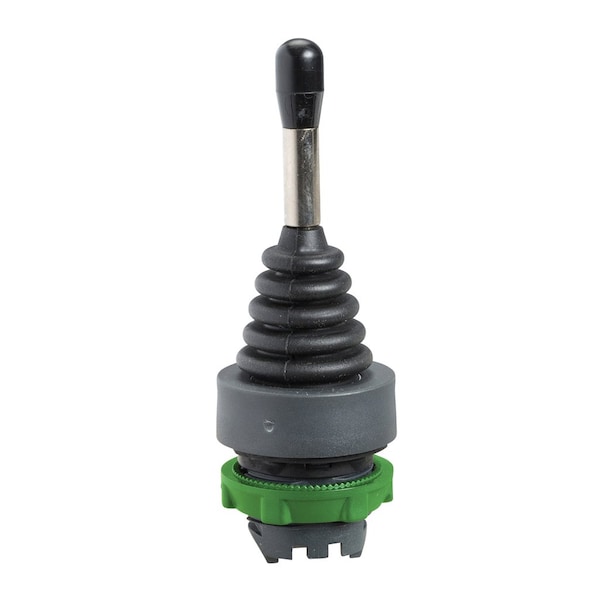

Cabeza para controlador de joystick, Harmony XB5, XDA, plástico, 22mm, 2 direcciones, retorno por resorte, 1 de contacto normalmente abierto (NO).
| Item | Joystick controller 022 2-direction spri |
|---|---|
| Standards | UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1 |
| Device Presentation | basic element |
| Cad Overall Width | 30 mm |
| Mechanical Durability | 1,000,000 cycle |
| Operator Profile | 54 mm (long operating shaft) |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Mounting Diameter | 22 mm |
| Product Or Component Type | head for joystick controller |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Device Short Name | ZD5 |
| Ambient Air Temperature For Operation | -25-70°C |
| Cad Overall Depth | 85 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Bezel Material | plastic |
| Protective Treatment | TH |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Electrical Shock Protection Class | class II IEC 60536 |
| Cad Overall Height | 47 mm |
| Type Of Operator | to spring return |
| Operator Direction Information | 2 directions |
| Product Certifications | UL Listed || GL || LROS (Lloyds register of shipping) || DNV || CSA || BV |
| Shape Of Signaling Unit Head | round |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Range of Product | Harmony XB5 |
| Package Quantity | 1 |
