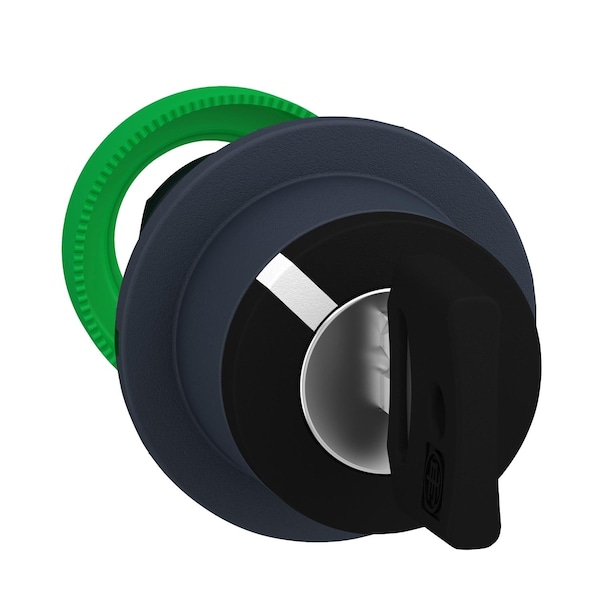

Encaminarse hacia el interruptor selector de llave clave, Harmony XB5, montado a ras, 455 2 posiciones con retorno de derecha a izquierda.
| Item | Key Selector Switch 3 Pos |
|---|---|
| Standards | UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1 |
| Bezel Material | dark grey plastic |
| Ambient Air Temperature For Storage | -40-70°C |
| Shape Of Signaling Unit Head | round |
| Product Certifications | UL Listed || CSA || GL || BV || LROS (Lloyds register of shipping) || DNV |
| Device Short Name | ZB5 |
| Key Withdrawal Position | left |
| Electrical Composition Code | C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3 single front mounting || C15 1 single front mounting |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Ambient Air Temperature For Operation | -40-70°C |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Cad Overall Width | 37 mm |
| Operator Profile | black key switch |
| Type Of Keylock | key 455 |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Cad Overall Depth | 72 mm |
| Head Type | built-in, flush |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Cad Overall Height | 37 mm |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Device Presentation | basic element |
| Type Of Operator | right to left spring return |
| Protective Treatment | TH |
| Overvoltage Category | class II IEC 60536 |
| Product Or Component Type | head for key selector switch |
| Mechanical Durability | 1,000,000 cycle |
| Mounting Diameter | 30.5 mm |
| Operator Position Information | 2 positions 90° |
| Range of Product | Harmony XB5 |
| Package Quantity | 1 |
