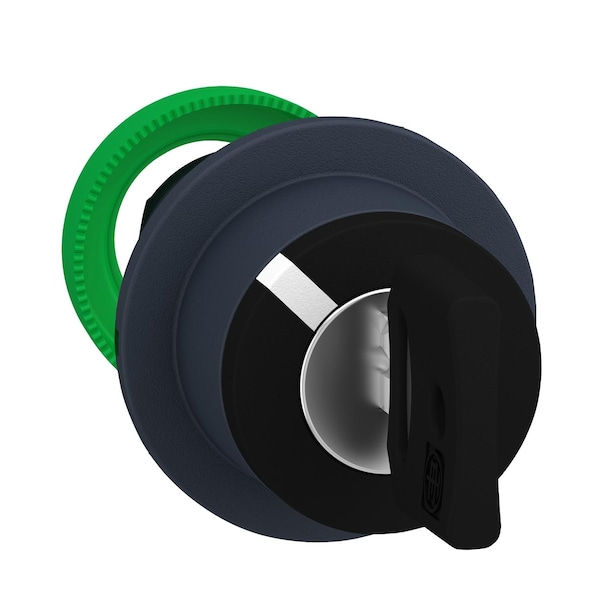

Ir a interruptor selector de llave, Harmony XB5, montaje empotrado 8D1 de 2 posiciones que se mantiene en su lugar.
| Item | Flush mounted selector switch head key 8 |
|---|---|
| Type of Operator | stay put |
| Bezel Material | dark grey plastic |
| Standards | UL 508, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-1 |
| Height | 37 mm |
| Width | 37 mm |
| Shape of Signaling Unit Head | round |
| Key Withdrawal Position | in any position |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Operator Profile | black key switch |
| Electrical Composition Code | C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C3 6 single front mounting, SF1 3 single front mounting, C15 1 single front mounting |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Overvoltage Category | class II IEC 60536 |
| Product or Component Type | head for key selector switch |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Mounting Diameter | 30.5 mm |
| Range of Product | Harmony XB5 |
| Device Short Name | ZB5 |
| Head Type | built-in, flush |
| Ik Degree of Protection | IK03 IEC 50102 |
| Ip Degree of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Mechanical Durability | 1,000,000 cycle |
| Protective Treatment | TH |
| Operator Position Information | 2 positions 90° |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Ambient Air Temperature For Operation | -40-70°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Type of Keylock | key 3131A || Dom 8D1 |
| Product Certifications | LROS || UL Listed || DNV || BV || CSA || GL |
| Cad Overall Width | 37 mm |
| Cad Overall Height | 37 mm |
| Cad Overall Depth | 72 mm |
| Package Quantity | 1 |
