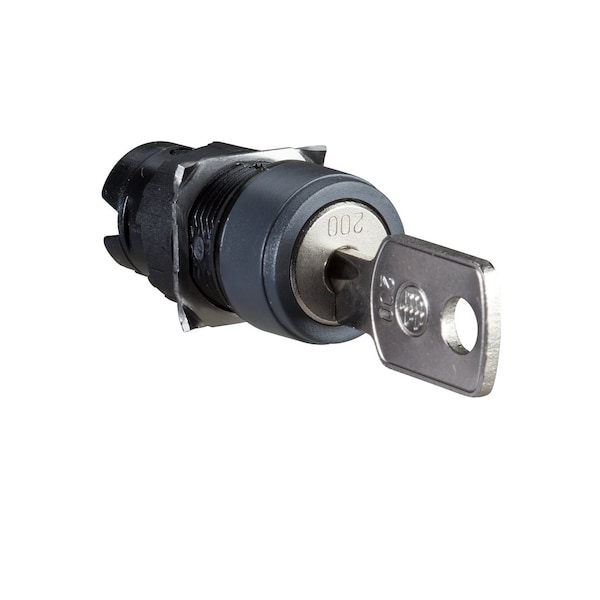

Cabeza para interruptor selector de llave, Harmony XB6, 16mm 2 posiciones, llave de 200.
| Item | Selector switch head 016 2-position stay |
|---|---|
| Bezel Material | plastic |
| Standards | JIS C 852 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-1 |
| Cad Overall Height | 18 mm |
| Product Certifications | CSA || UL || CCC || GOST |
| Electrical Shock Protection Class | class II IEC 61140 |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Operation | -25-70°C |
| Nema Degree Of Protection | NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94 |
| Protective Treatment | TC |
| Shape Of Signaling Unit Head | round |
| Ambient Air Temperature For Storage | -40-70°C |
| Type Of Operator | stay put |
| Operator Position Information | 2 positions |
| Device Short Name | ZB6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Cad Overall Depth | 55 mm |
| Type Of Keylock | key 200 |
| Key Withdrawal Position | right-hand |
| Product Or Component Type | head for key selector switch |
| Cad Overall Width | 18 mm |
| Operator Profile | black key switch |
| Mounting Diameter | 16 mm |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6 |
| Range of Product | Harmony XB6 |
| Package Quantity | 1 |
