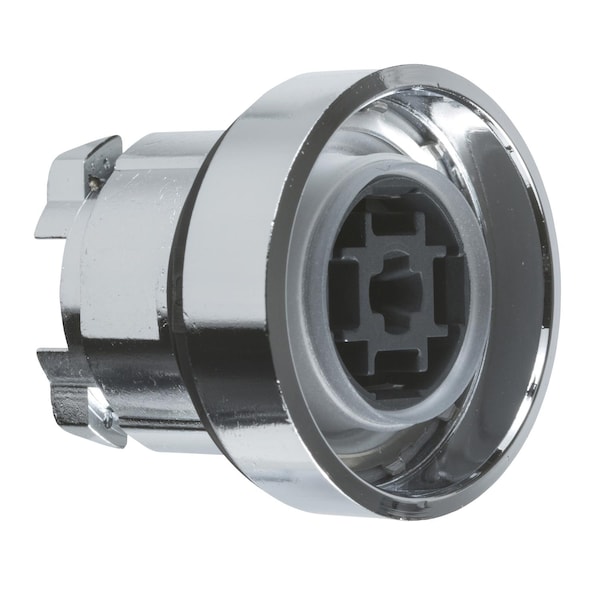

Cabezal para botón pulsador no iluminado, Harmony XB4, metal, 22mm, retorno por resorte, sin tapa.
| Lamp Type | Not Applicable |
|---|---|
| Item | Push Button |
| Bezel Material | Chrome |
| Terminal Connection | Screw Clamp, Faston Connector, Spring Terminal |
| IP Rating | IP66, IP67, IP69, IP69K |
| Series | XB4 |
| Standards | CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508 |
| Lamp Module Type | Not Applicable |
| Shape Of Signaling Unit Head | round |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Product Certifications | BV || GL || CSA || DNV || LROS (Lloyds register of shipping) || UL Listed |
| Electrical Composition Code | C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting |
| Overvoltage Category | class I IEC 60536 |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Cad Overall Depth | 28 mm |
| Operator Profile | without cap |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Mechanical Durability | 10,000,000 cycle |
| Ambient Air Temperature For Operation | -40-70°C |
| Product Or Component Type | head for non-illuminated push-button |
| Type Of Operator | spring return |
| Protective Treatment | TH |
| Ambient Air Temperature For Storage | -40-70°C |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Cad Overall Height | 29 mm |
| Device Short Name | ZB4 |
| Mounting Diameter | 22 mm |
| Head Type | Standard |
| Cad Overall Width | 29 mm |
| Range of Product | Harmony XB4 |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Operator Illumination | Non-Illuminated |
| Operating Temperature - Maximum | 158 deg F |
| Lamp Voltage - Maximum | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Product Type | Push Button Operators |
| NEMA Enclosure Rating | 13, 4X |
| Panel Cutout Diameter | 22 mm |
| Operating Temperature - Minimum | -40 deg F |
| Number of Indicator Lights | 0 |
| Package Quantity | 1 |
