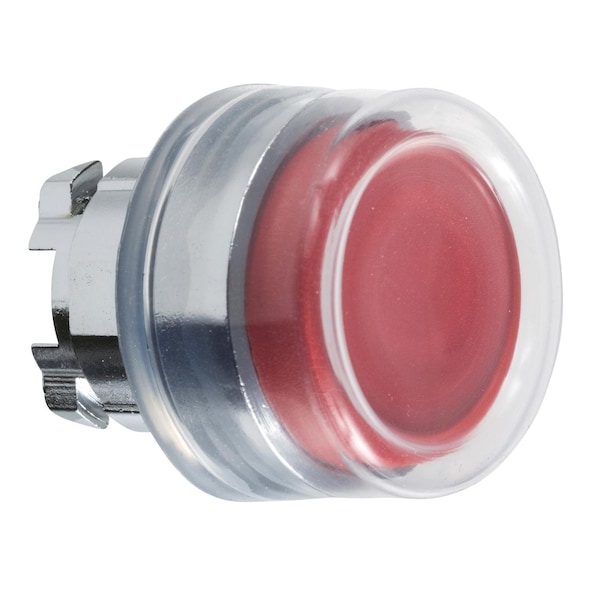

Cabeza para botón de presión no iluminado, Harmony XB4, metal, sobresaliente, rojo, 22mm, retorno por resorte, con protector, sin marcar.
| Item | Push button head,metal,projecting,red |
|---|---|
| Standards | UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1 |
| Bezel Material | chromium plated metal |
| Ambient Air Temperature For Storage | -40-70°C |
| Cad Overall Height | 30 mm |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 |
| Cad Overall Depth | 35 mm |
| Shape Of Signaling Unit Head | round |
| Operator Additional Information | clear boot |
| Device Presentation | basic element |
| Mechanical Durability | 10,000,000 cycle |
| Operator Profile | red projecting, unmarked |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Product Or Component Type | head for non-illuminated push-button |
| Overvoltage Category | class I IEC 60536 |
| Mounting Diameter | 22 mm |
| Device Short Name | ZB4 |
| Protective Treatment | TH |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Cad Overall Width | 30 mm |
| Product Certifications | BV || GL || UL Listed || CSA || LROS (Lloyds register of shipping) || DNV |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Product Compatibility | not compatible with legend holder |
| Electrical Composition Code | C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting |
| Head Type | Standard |
| Ambient Air Temperature For Operation | -40-70°C |
| Type Of Operator | spring return |
| Range of Product | Harmony XB4 |
| Cap/Operator or Lens Colour | red |
| Package Quantity | 1 |
