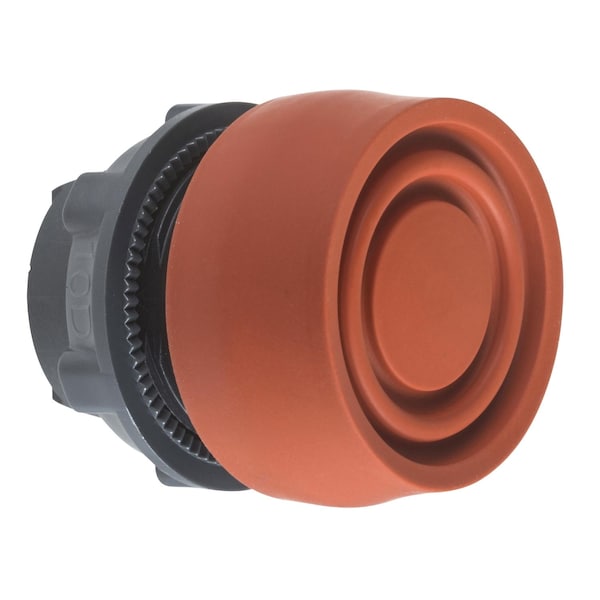

Cabeza para botón pulsador no iluminado, Harmony XB5, plástico, rasante, rojo, 22mm, retorno por resorte, cubierta coloreada, sin marcas.
| Type of Operator | spring return |
|---|---|
| Item | Red flush pushbutton head 022 spring ret |
| Bezel Material | dark grey plastic |
| Width | 30 mm |
| Height | 30 mm |
| Standards | UL 508, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1, IEC 60947-5-1, JIS C8201-1 |
| Device Presentation | basic element |
| Mechanical Durability | 10,000,000 cycle |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Operator Profile | red flush, unmarked |
| Operator Additional Information | boot |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Range of Product | Harmony XB5 |
| Electrical Composition Code | C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TH |
| Ik Degree of Protection | IK03 IEC 50102 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Ip Degree of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 |
| Shape of Signaling Unit Head | round |
| Head Type | Standard |
| Product Compatibility | legend holder |
| Mounting Diameter | 22 mm |
| Product or Component Type | head for non-illuminated push-button |
| Device Short Name | ZB5 |
| Station Name | XALD 1...5 cut-outs, XALK 2...5 cut-outs |
| Ambient Air Temperature For Storage | -40-70°C |
| Ambient Air Temperature For Operation | -40-70°C |
| Product Certifications | GL || UL Listed || CSA || LROS (Lloyds register of shipping) || BV || DNV |
| Cad Overall Height | 30 mm |
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 33 mm |
| Package Quantity | 1 |
