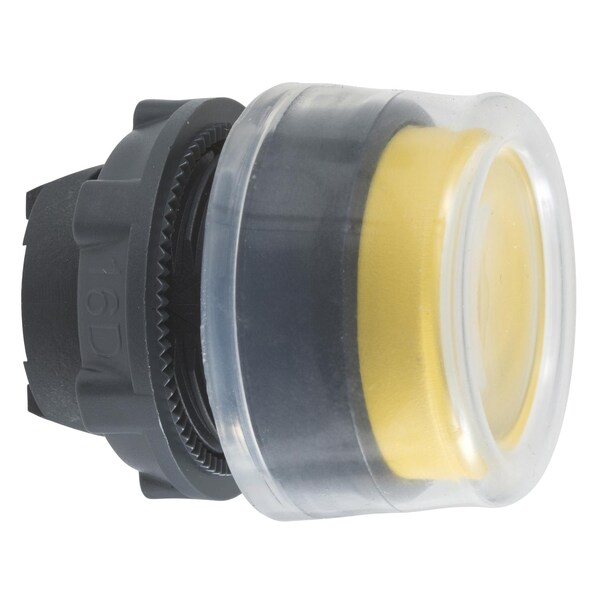

Cabeza para botón pulsador no iluminado, Harmony XB5, de plástico, sobresaliente, amarilla, 22mm, retorno por resorte, cubierta, sin marcar.
| Item | Push button head,plastic,projecting,y |
|---|---|
| Standards | EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1 |
| Bezel Material | dark grey plastic |
| Overvoltage Category | class II IEC 60536 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 |
| Station Name | XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs |
| Product Certifications | UL Listed || BV || CSA || GL || DNV || LROS (Lloyds register of shipping) |
| Cad Overall Width | 30 mm |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Head Type | Standard |
| Device Presentation | basic element |
| Type Of Operator | spring return |
| Mechanical Durability | 10,000,000 cycle |
| Shape Of Signaling Unit Head | round |
| Protective Treatment | TH |
| Operator Profile | yellow projecting, unmarked |
| Electrical Composition Code | C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Compatibility | not compatible with legend holder |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Operator Additional Information | clear boot |
| Ambient Air Temperature For Operation | -40-70°C |
| Cad Overall Depth | 35 mm |
| Mounting Diameter | 22 mm |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Cad Overall Height | 30 mm |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Product Or Component Type | head for non-illuminated push-button |
| Device Short Name | ZB5 |
| Range of Product | Harmony XB5 |
| Package Quantity | 1 |
