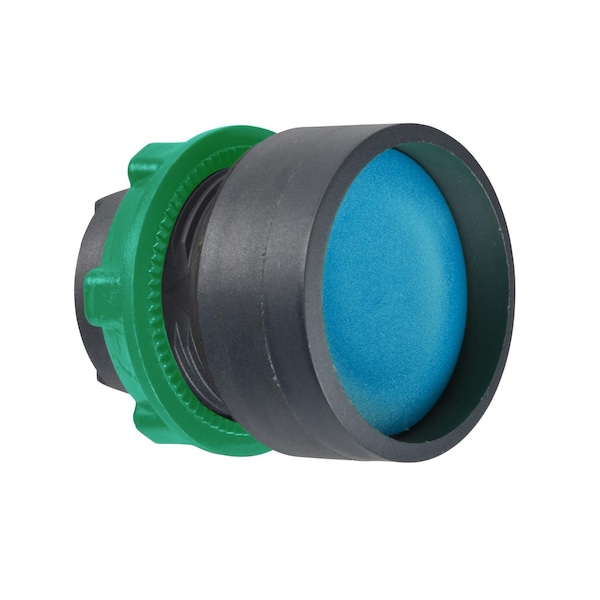

Cabeza para botón pulsador no iluminado, Harmony XB5, XB4, botón pulsador empotrado azul Ø22 mm con retorno por resorte sin marcar.
| Item | Blue recessed pushbutton head 022 spring |
|---|---|
| Bezel Material | dark grey plastic |
| Cad Overall Width | 29 mm |
| Product Certifications | UL Listed || GL || CSA || BV || LROS (Lloyds register of shipping) || DNV |
| Device Short Name | ZB5 |
| Type Of Operator | spring return |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Protective Treatment | TH |
| Mounting Diameter | 22 mm |
| Cad Overall Height | 29 mm |
| Ambient Air Temperature For Operation | -40-70°C |
| Product Or Component Type | head for non-illuminated push-button |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Overvoltage Category | class II IEC 60536 |
| Device Presentation | basic element |
| Shape Of Signaling Unit Head | round |
| Mechanical Durability | 10,000,000 cycle |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Cad Overall Depth | 31 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Electrical Composition Code | C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting |
| Station Name | XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs |
| Head Type | Standard |
| Operator Profile | blue recessed, unmarked |
| Operator Additional Information | high guard |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Range of Product | Harmony XB5 |
| Package Quantity | 1 |
