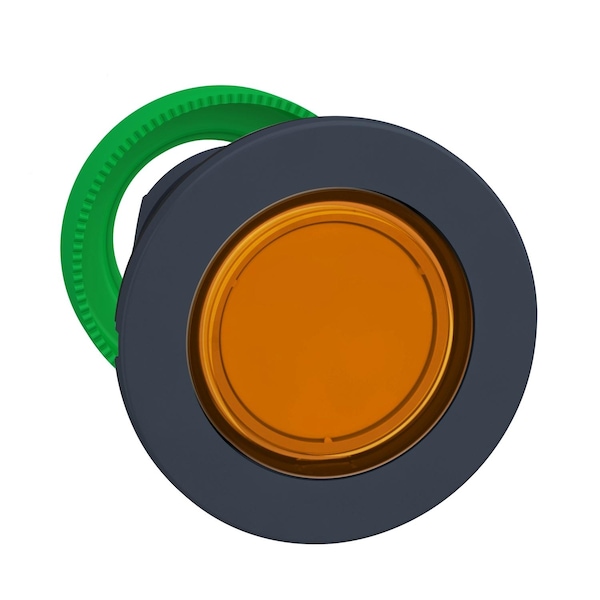

Cabeza para piloto de encendido, Harmony XB5, antimicrobiano, plástico, naranja, 30 mm, LED universal, lente lisa.
| Item | Orange Pilot Light |
|---|---|
| Standards | EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011 |
| Bezel Material | dark grey plastic |
| Head Type | built-in, flush |
| Shape Of Signaling Unit Head | round |
| Device Presentation | basic element |
| Cad Overall Depth | 30 mm |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Cad Overall Height | 37 mm |
| Product Or Component Type | head for pilot light |
| Product Compatibility | universal LED |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Cad Overall Width | 37 mm |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Operator Additional Information | with plain lens |
| Mounting Diameter | 30.5 mm |
| Device Short Name | ZB5 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Ambient Air Temperature For Operation | -40-70°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Protective Treatment | TH |
| Overvoltage Category | class II IEC 60536 |
| Cap/Operator Or Lens Colour | yellow |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Electrical Composition Code | P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED |
| Range of Product | Harmony XB5 |
| Package Quantity | 1 |
