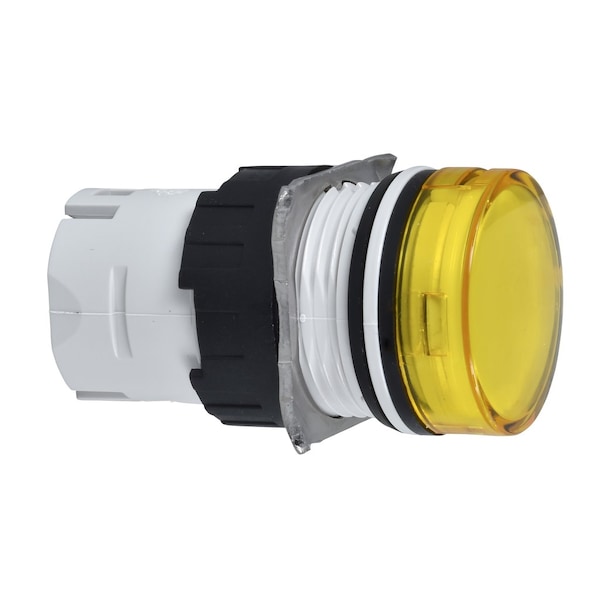

Cabeza para luz piloto, Harmony XB6, amarilla, 16mm, LED integrado.
| Color | Yellow |
|---|---|
| Item | 16Mm Pilot Lt 65168007 |
| Standards | EN/IEC 60947-5-1, UL 508, EN/IEC 60947-1, JIS C 852, JIS C 4520, EN/IEC 60947-5-5, CSA C22.2 No 14 |
| Width | 18 mm |
| Height | 18 mm |
| Range of Product | Harmony XB6 |
| Bezel Material | plastic |
| Nema Degree of Protection | NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94 |
| Product Compatibility | integral LED |
| Shape of Signaling Unit Head | round |
| Ip Degree of Protection | IP65 IEC 60529 |
| Mounting Diameter | 16 mm |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6, 5 gn 2-500 Hz)IEC 60068-2-6 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Ambient Air Temperature For Storage | -40-70°C |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Protective Treatment | TC |
| Product or Component Type | head for pilot light |
| Ambient Air Temperature For Operation | -25-70°C |
| Device Short Name | ZB6 |
| Product Certifications | CCC || GOST || UL || CSA |
| Cad Overall Depth | 33 mm |
| Cad Overall Width | 18 mm |
| Cad Overall Height | 18 mm |
| Cap/Operator Or Lens Colour | yellow |
| Package Quantity | 1 |
