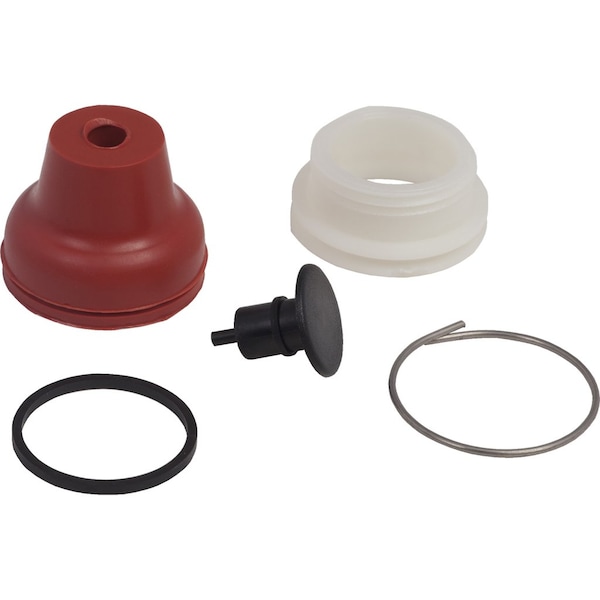

Cabeza para botón de presión, Harmony XAC, plástico, negro, con cubierta, recorrido de operación de 16mm, 40...+70 grados Celsius.
| Item | Pendant Station Booted Operator Xac |
|---|---|
| Standards | IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 14 |
| IP Rating | IP65 conforming to IEC 60529 |
| Operator Color | Black |
| Component Name | XACB |
| Electrical Shock Protection Class | class II IEC 61140 |
| Operating Travel | 16 mm |
| Ambient Air Temperature For Operation | -40-70°C |
| Product Compatibility | XESD1191, XESD1281, XESD1181, XESD1291 |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Ik Degree of Protection | IK08 conforming to IEC 62262 |
| Range of Product | Harmony XAC |
| Operator Additional Information | booted |
| Product or Component Type | head for push-button |
| Marking | unmarked |
| Ambient Air Temperature For Storage | -40-70°C |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Package Quantity | 1 |
