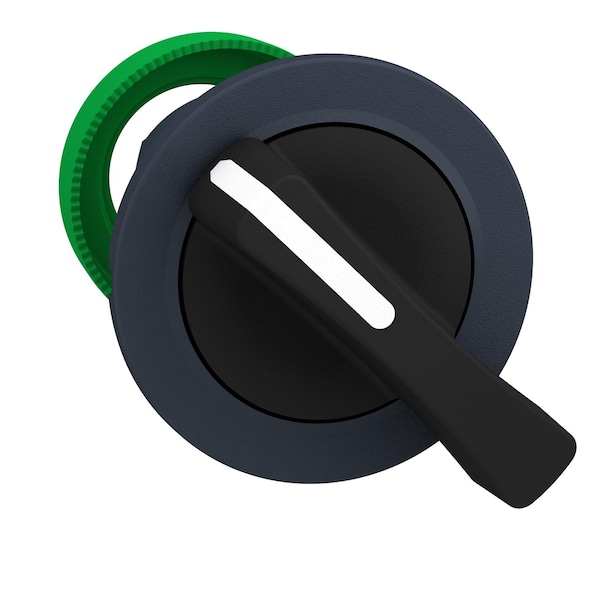

Cabezal para interruptor selector, Harmony XB5, con montaje empotrado, mango largo negro de 3 posiciones que se queda en su lugar.
| Item | Selector Switch 3 Pos Extended Knob |
|---|---|
| Height | 37 mm |
| Width | 37 mm |
| Standards | CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-5-1, UL 508, JIS C8201-1 |
| Bezel Material | dark grey plastic |
| Type of Operator | stay put |
| Overvoltage Category | class II IEC 60536 |
| Ip Degree of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69 |
| Head Type | built-in, flush |
| Ambient Air Temperature For Storage | -40-70°C |
| Device Short Name | ZB5 |
| Mounting Diameter | 30.5 mm |
| Range of Product | Harmony XB5 |
| Electrical Composition Code | C3 6 single front mounting, C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, SF1 3 single front mounting |
| Operator Additional Information | non padlockable |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Mechanical Durability | 1,000,000 cycle |
| Operator Position Information | 3 positions +/- 45° |
| Product or Component Type | head for selector switch |
| Ambient Air Temperature For Operation | -40-70°C |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Shape of Signaling Unit Head | round |
| Protective Treatment | TH |
| Ik Degree of Protection | IK03 IEC 50102 |
| Operator Profile | long handle |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Cad Overall Width | 37 mm |
| Cad Overall Height | 37 mm |
| Product Certifications | DNV || UL Listed || BV || LROS (Lloyds register of shipping) || GL || CSA |
| Cad Overall Depth | 46 mm |
| Package Quantity | 1 |
