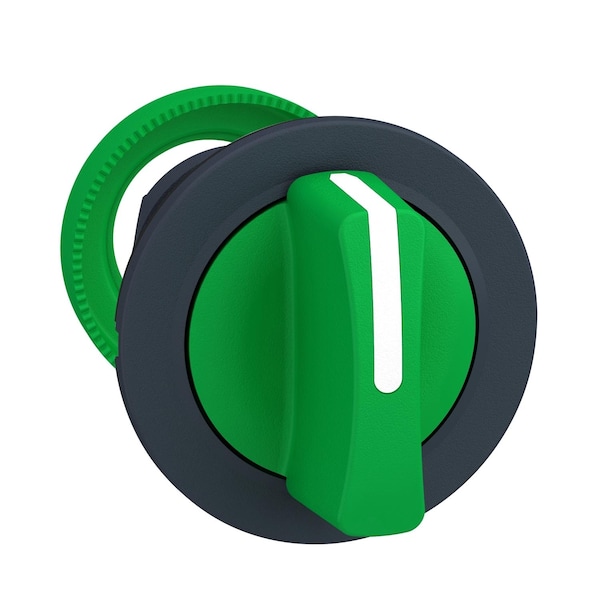

Cabeza para interruptor selector, Harmony XB5, montaje en rasante verde de 3 posiciones al centro de retorno.
| Item | Flush mounted green selector switch head |
|---|---|
| Bezel Material | dark grey plastic |
| Standards | JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-1 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Operator Position Information | 3 positions +/- 45° |
| Cad Overall Width | 37 mm |
| Electrical Composition Code | C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting |
| Operator Profile | green standard handle |
| Mounting Diameter | 30.5 mm |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69 |
| Protective Treatment | TH |
| Ambient Air Temperature For Storage | -40-70°C |
| Shape Of Signaling Unit Head | round |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Type Of Operator | to centre spring return |
| Product Certifications | UL Listed || CSA || LROS || GL || DNV || BV |
| Overvoltage Category | class II IEC 60536 |
| Ambient Air Temperature For Operation | -40-70°C |
| Cad Overall Height | 37 mm |
| Device Short Name | ZB5 |
| Cad Overall Depth | 46 mm |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Head Type | built-in, flush |
| Product Or Component Type | head for selector switch |
| Mechanical Durability | 1,000,000 cycle |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Range of Product | Harmony XB5 |
| Package Quantity | 1 |
