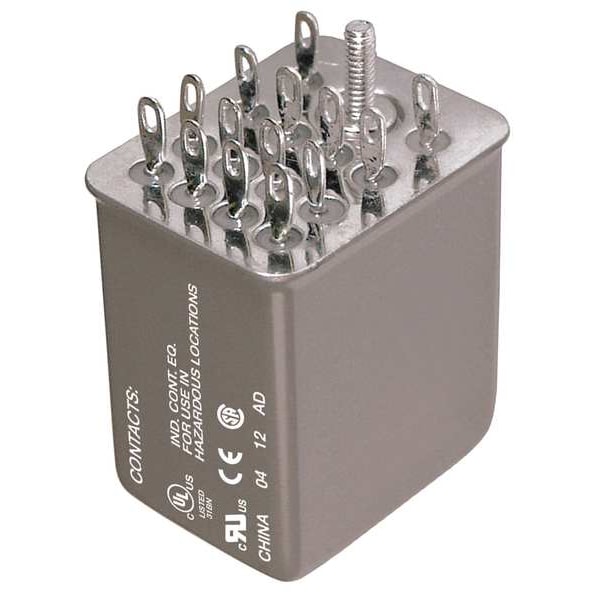

Relé sellado herméticamente, bobina de voltaje de 120 VCA, cuadrado, 14 pines, 4PDT.
| Item | Hermetically Sealed Relay |
|---|---|
| Item - Relay | Hermetically Sealed Relay |
| Coil Volts | 120V AC |
| AC Contact Rating - Relay | 3A @ 240V |
| DC Contact Rating - Relay | 3 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 14 |
| Contact Form - Relay | 4PDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 1.2 VA |
| HP @ 120V | 1/16 hp |
| Contact Material | Silver |
| Body Height - Relay | 1.28 in |
| Body Width - Relay | 0.91 in |
| Body Depth - Relay | 1.16 in |
| Overall Height - Relay | 1.52 in |
| Standards | CE Certified, CSA Certified, UL Listed |
| Socket | Mfr. No. 70-461-1, 70-782D14-1 |
| Safety Rating | Class 1, Div 2 |
| Contact Rating | 3A @ 240VAC/30VDC |
| Base Type | Square |
| Status Indicator | No Indicator |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| HP @ 240V | 1/10 hp |
| Contact Form | 4PDT |
| Pins | 14 |
| Socket Code | G |
| Push To Test | No |
| Coil Resistance | 3,900 ohms |
| Operating Current | 3 A at 120V AC (Resistive Load), 3 A at 240V AC (Resistive Load), 3 A at 30V DC (Resistive Load) |
| Weight | 1.59 oz |
| Current Rating | 3 A |
| Response Time | 20 msec |
| IP Rating | IP40 |
| For Use With | Automation Panels and Controls |
| Mechanical Operating Durability | 10,000,000 |
| Body Height | 1.16 in |
| Body Width | 0.91 in |
| Electrical Connection | Plug-In |
| Overall Depth | 1.53 in |
| Body Depth | 1.28 in |
| Base Shape | Square |
| Coil Voltage | 120 V AC |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Power Consumption | 1.2 VA |
| Dielectric Strength | 1,600V AC Between Coil and Contact, 1,600V AC Between Poles |
| Maximum Switching Voltage | 240 V AC |
| Push-To-Test Method | No Button |
| Electrical Operating Durability | 100,000 |
| Maximum Operating Temperature | 158 deg F |
| Horsepower @ 120V AC | 1/16 hp |
| Number of Pins | 14 |
| Mounting Style | Plug-In |
| Contact Rating (AC) | 3 A @ 120/240V |
| Contact Rating (DC) | 3 A @ 30 V |
| Series | 782 Series |
| Minimum Switching Current | 100 mA |
| Motor Rated | Yes |
| Minimum Operating Temperature | -49 deg F |
| Horsepower @ 240V AC | 0.125 HP |
| Sealing | Hermetically Sealed |
| Input Voltage | 120 V |
| Width | 0.9 in |
| Depth | 1.13 in |
| Series name | Miniature |
| ambient temperature range - operational | -49 to 158°F (-45 to 70°C) |
| Height | 1.28 in |
| cover options | Hermetically sealed |
| Vibration Resistance | 6 gn 10 to 55 Hz) |
| Average Coil Consumption | 1.2 VA |
| Product Range | Harmony Electromechanical Relays |
| [Ie] rated operational current | 3 A at 120 V AC (on resistive load); 3 A at 240 V AC (on resistive load); 3 A at 30 V DC (on resistive load) |
| Shock Resistance | 10 gn |
| Contact Composition | 4 C/O |
| Product Type | Relay |
| Mechanical Durability | 10,000,000 cycle |
| Product Certifications | CSA, UL, CE |
| Contacts Material | Silver |
| Electrical Durability | 100000 cycles resistive IEC |
| Ambient Air Temperature for Storage | -76 to 185°F |
| [Uc] control circuit voltage | 120 V |
| Package Quantity | 1 |
