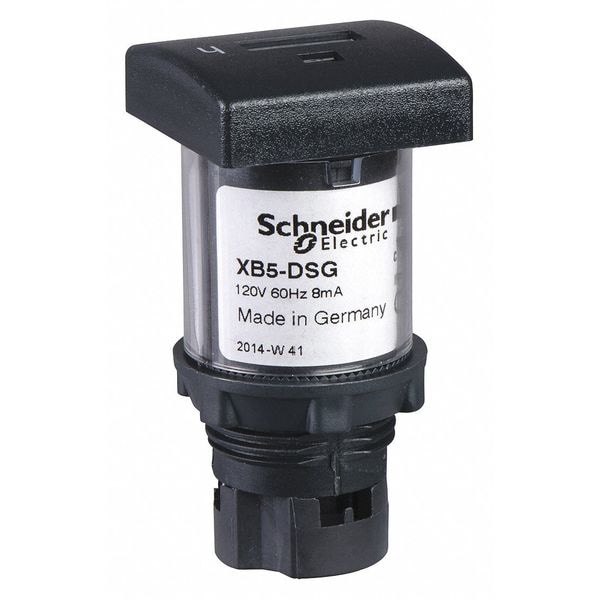

Contador de horas 120 Vca
| Item | Hour Meter |
|---|---|
| Display Type | Electromechanical |
| Reset Type | No Reset |
| Display Units | Hours |
| Operating Voltage | 120V AC |
| NEMA Type | 4X, NEMA 13 |
| Number of Digits | 5 |
| Bezel Face Shape | Square |
| Time Range | 0 to 9999.9 |
| Mounting Method | Screw |
| Depth | 2.36 in |
| Width | 1.18 in |
| Terminal Type | Screw Clamp |
| Temp. Range | -13 to 158 deg F |
| NEMA Rating | 13, 4X |
| Ambient Temp. Range | -40 to 158 deg F |
| Material of Construction | Plastic |
| Elapsed Time To | 9,999.9 |
| Hz | 60 Hz |
| Fits | 0.89 in dia Panel Opening |
| Length | 1.18 in |
| Standards | CE, EN 60947-5-1, UL |
| Length (Straight Wireway) | 1.18 in |
| IP Rating | IP65 conforming to IEC 60529 |
| Mounting | Panel |
| Diameter | 22 mm |
| Height | 30 mm |
| Overall Width | 1-1/8 in |
| Overall Height | 1-1/8 in |
| Overall Diameter | Not Applicable |
| Cutout Diameter | 7/8 in |
| NEMA Enclosure Rating | 13, 4X |
| Display Span - Maximum | 9,999.9 |
| Mounting Style | Panel, Flush |
| Mount Securing Method | Screw |
| Operating Temperature - Maximum | 158 deg F |
| Bezel Face Diameter | Not Applicable |
| Bezel Face Height | 1-1/8 in |
| Bezel Face Width | 1-1/8 in |
| Counter Display Type | Analog |
| Operating Temperature - Minimum | -13 deg F |
| Input Voltage - Maximum | 120 V AC |
| Includes Mounting Hardware | Included |
| Overall Depth | 2-3/8 in |
| Package Quantity | 1 |
