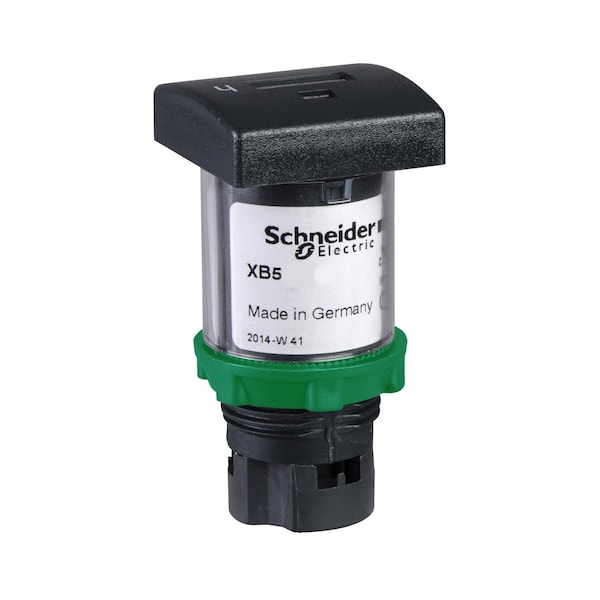

Hour counter, Harmony XB5, plastic, 22mm, mechanical 5 digit display, 230..240V AC
| Item | Hour counter - mechanical 5 digit displa |
|---|---|
| Height | 30 mm |
| Depth | 60 mm |
| Width | 30 mm |
| Standards | IEC 60947-5-1 |
| Range of Product | Harmony XB5 |
| Nema Degree of Protection | NEMA 4X || NEMA 13 |
| Device Presentation | monolithic product |
| Electrical Shock Protection Class | class II IEC 60536 |
| Product or Component Type | hour counter |
| Ambient Air Temperature For Storage | -40-70°C |
| Mounting Mode | flush-mounted |
| Bezel Material | dark grey plastic |
| Current Consumption | 8 mA |
| [Us] Rated Supply Voltage | +/- 10% |
| Mounting Diameter | 22 mm |
| Ip Degree of Protection | IP65 conforming to IEC 60529 |
| Protective Treatment | TH |
| Reset | without |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Mounting Support | panel mounting |
| Ambient Air Temperature For Operation | -25-70°C |
| Display Digits | 5 |
| Product Certifications | CE || UL |
| Package Quantity | 1 |
