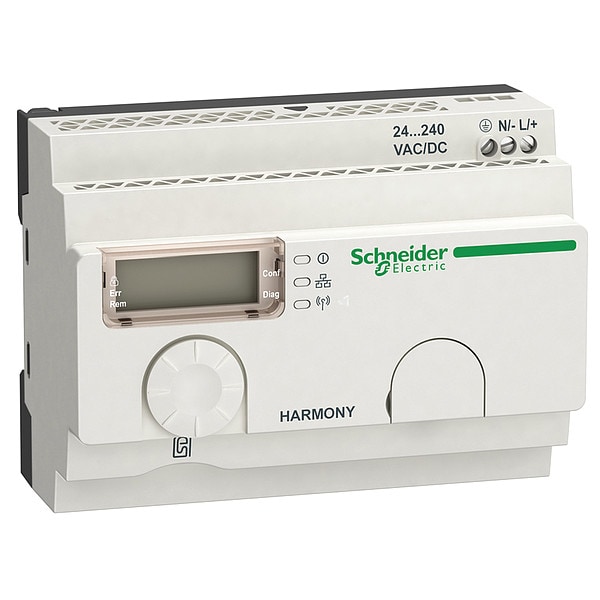

HubWireless, 60mm, Plástico, Negro, Verde
| Item | Hub Wireless |
|---|---|
| For Use With | Harmony XB5R Series |
| Features | Harmony Hub Wireless, Mercury Free |
| Color | Black, Green |
| Power Rating | 4 W max |
| Voltage | 24 to 240V AC/DC |
| Material | Plastic |
| Overall Length | 60 mm |
| Height | 90 mm |
| Width | 122 mm |
| Cable Length | Not Applicable |
| Depth | 60 mm |
| Standards | CSA C22.2 No 14, EN 62311, EN/IEC 60950-1, EN/IEC 61131-2, ETSI EN 300 328, ETSI EN 300 440-2, UL 508 |
| Compatible with Series | XB5R |
| Compatible Product Type | Push Buttons, Contact Blocks |
| Ip Degree Of Protection | IP20 IEC 60529 casing) || IP20 terminals) |
| Short-Circuit Protection | 16 A GB2 circuit breaker |
| Response Time | < 30 msec |
| Housing Material | self-extinguishing plastic |
| Operating Altitude | 0 to 6561.68 ft (0 to 2000 m) |
| [Us] Rated Supply Voltage | 24 to 240 V AC/DC 50/60 Hz - 10 to 10 % |
| Pollution Degree | 2 IEC 60664-1 |
| Breaking Capacity | 750 VA, 15 W |
| Surge Withstand | 1 kV differential mode IEC 61000-4-5 || 2 kV common mode IEC 61000-4-5 |
| Control Circuit Frequency | 50 to 60 Hz +/- 10 % |
| Antenna Gain | 0 dBi |
| Device Short Name | ZBRN2 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| Immunity To Microbreaks | 10 ms |
| Shock Resistance | 10 gn 16 ms) 6000 shocks IEC 60068-2-27 |
| Radio Channels Utilisation | Less than or Equal to 60 devices |
| Status Led | 1 LED Green power ON || 1 LED Yellow communication network || 5 LEDs Red function mode || 1 LED green and yellow reception signal |
| Electromagnetic Compatibility | 1.2/50µs shock waves immunity test 1 kV differential mode) IEC 61000-4-5 || 1.2/50µs shock waves immunity test 2 kV common mode) IEC 61000-4-5 || immunity to microbreaks and voltage drops 10 ms IEC 61000-4-11 |
| Vibration Resistance | +/- 3.5 mm 5-14 Hz) IEC 60068-2-6 || 1 gn 5-150 Hz) on panel mounting IEC 60068-2-6 || 2 gn 8-150 Hz) on DIN rail IEC 60068-2-6 |
| Channels Utilisation | <= 60 devices |
| Radio Agreement | ANATEL, type III ETSI EN 301 489-3 || FCC, category 2 ETSI EN 300 440-1 || ICASA || RSS, category 1 ETSI EN 300 440-1 || SRRC |
| Antenna Type | integrated |
| Ambient Air Temperature For Storage | -40-70°C |
| Storage Altitude | 0-3000 m |
| Product Specific Application | Wireless Schneider Electric devices ecosystem |
| Electrical Connection | 1 conductor cable 0.2-4 mm² - AWG 24 to AWG 12 - solid - without cable end IEC 60947-1 || 2 conductors cable 0.2-1.5 mm² - AWG 24 to AWG 16 - solid - without cable end IEC 60947-1 || 1 conductor cable 0.2-0.75 mm² - AWG 24 to AWG 14 - flexible - with cable end IEC 60947-1 || 2 conductors cable 0.2-2.5 mm² - AWG 24 to AWG 18 - flexible - with cable end IEC 60947-1 |
| Transmission Frequency | 2405-2480 MHz |
| Rated Supply Voltage | 24 to 240 V AC/DC 50/60 Hz - 10 to 10% |
| Relative Humidity | 90-90 % -25-55°C, without condensation ETSI EN 300 440-1 |
| Rated Short-Duration Power Frequency Withstand Voltage | 1.5 kV 50 Hz EN/IEC 60947-5-1 |
| Topology | devices linked by daisy-chaining or tap junctions |
| Parity | no || even || odd |
| Dielectric Strength | 3000 V between input and output AC || 4250 V between input and output DC || 1500 V between input and ground AC || 2150 V between input and ground DC |
| Maximum Radio Communication Distance | 328.08 ft (100 m) in free field; 820.21 ft (250 m) if a relay antenna is located between the transmitter and Harmony Hub; 196.85 ft (60 m) if an external antenna is connected to Harmony Hub; 82.02 ft (25 m) with Harmony Hub installed in a metal housing or in a closed metal enclosure |
| Communication Port Protocol | Modbus client application |
| Data Storage Equipment | SD card |
| Maximum Power Consumption In W | 4 W AC/DC |
| Radio Response Time | Less than 30 ms |
| Operating Position | any position |
| Data Format | 7 or 8 bits, 1 or 2 stop bits |
| Integrated Connection Type | 1 isolated serial link 2 x RJ45 in parallel Modbus Serial line slave Modbus slave RTU asynchronous in baseband RS485, half duplex, 1.2 to 115.2 kbauds, 2 twisted shielded pairs |
| Function Of Module | Zigbee green power concentrator |
| Tightening Torque | 0.35-0.4 N.m EN, IEC 60947-1, IEC 60947-1 || 3.09-3.54 lbf.in EN |
| Mounting Support | 35 mm symmetrical DIN rail conforming to EN/IEC 60715 || mounting plate |
| Product Or Component Type | Harmony Hub wireless gateway, Serial Line |
| Product Certifications | GOST || CE || UL || C-tick || CSA || CCC |
| Maximum Sensing Distance | 100 m in free field || 250 m if a relay antenna is located between the transmitter and Harmony Hub || 60 m if an external antenna is connected to Harmony Hub || 25 m with Harmony Hub installed in a metal housing or in a closed metal enclosure |
| Package Quantity | 1 |
