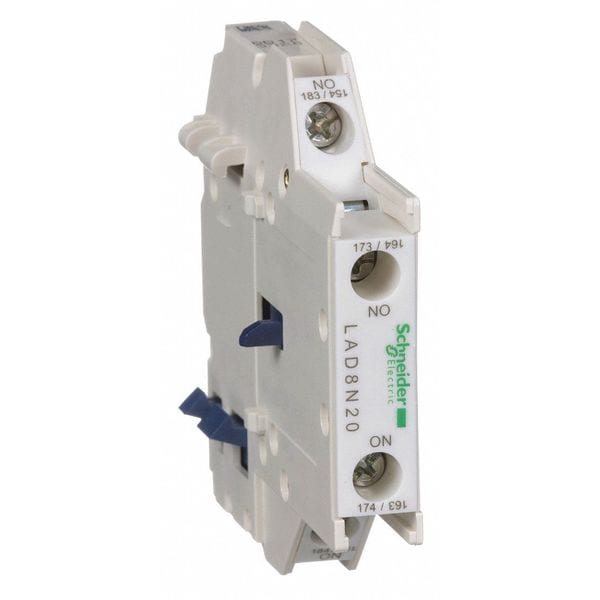

Contacto Auxiliar IEC
| Item | Auxiliary Contact Block |
|---|---|
| Number of NO Aux. Contacts | 2 |
| Number of NC Aux. Contacts | 0 |
| Amps | 10 A |
| Mounting | Side |
| For Use With | LC1/LC2 D09 to D150 AC Coils Only |
| Max. Contact Blocks (No.) | 2 |
| Number of Contacts | 2 |
| Voltage | 690V AC |
| Depth | 76 mm |
| Height | 76 mm |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Standards | EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, EN 50012, CB, CCC, EAC, UKCA |
| Width | 12.5 mm |
| Number of Normally Closed Contacts | 0 |
| Maximum Voltage Rating | 690 V AC |
| Current AC | 10 A |
| Number of Normally Open Contacts | 2 |
| IP Rating | IP20 |
| Compatible with Series | TeSys, TeSys Deca, TeSys F |
| Terminal Connection Type | Screw Clamp Terminals |
| Package Quantity | 1 |
