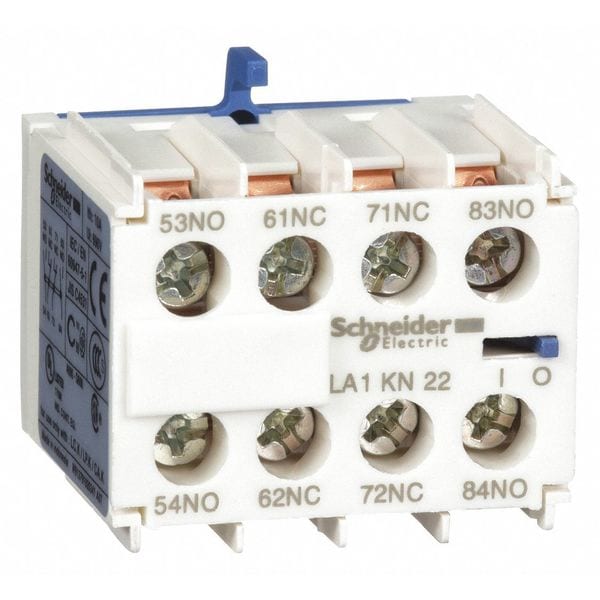

Bloque de contacto IEC, 10A, 2NC, 2NO
| Item | Auxiliary Contact Block |
|---|---|
| Number of NO Aux. Contacts | 2 |
| Number of NC Aux. Contacts | 2 |
| Amps | 10 A |
| Mounting | Front |
| For Use With | LC1K06; LC1K09; LC1K12; LP1K06; LP1K09; LP1K12 Magnetic Contactors |
| Number of Contacts | 4 |
| Code | X to Z |
| Voltage | 690V AC |
| Width | 38 mm |
| Standards | EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, JIS C8201-5-1, CB, CCC, CE, UKCA |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Height | 30 mm |
| Depth | 35 mm |
| Number of Normally Open Contacts | 2 |
| Terminal Connection Type | Screw Clamp Terminals |
| Current AC | 10 A |
| Frame Size | X, Y, Z |
| Compatible with Series | TeSys, TeSys K |
| Maximum Voltage Rating | 690 V AC |
| IP Rating | IP20 |
| Number of Normally Closed Contacts | 2 |
| Package Quantity | 1 |
