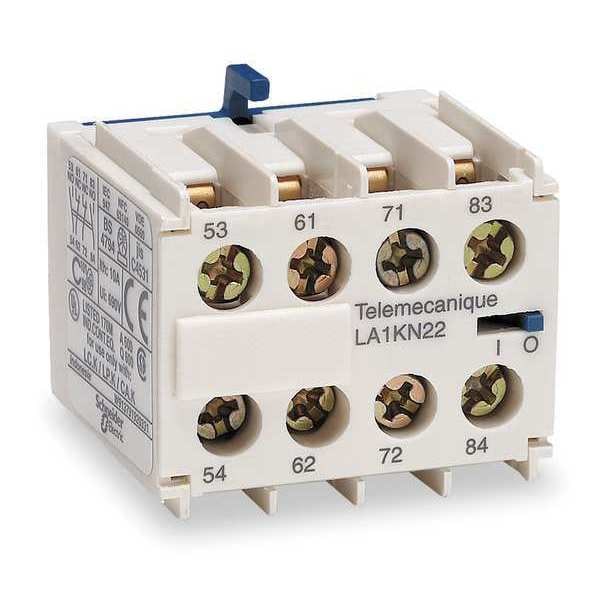

Bloque de contacto IEC, 10A, 2NA
| Item | Auxiliary Contact Block |
|---|---|
| Number of NO Aux. Contacts | 2 |
| Number of NC Aux. Contacts | 0 |
| Amps | 10 A |
| Mounting | Front |
| For Use With | LC1K06; LC1K09; LC1K12; LP1K06; LP1K09; LP1K12 Magnetic Contactors |
| Number of Contacts | 2 |
| Code | X to Z |
| Voltage | 690V AC |
| Width | 38 mm |
| Height | 30 mm |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Depth | 35 mm |
| Standards | EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, JIS C8201-5-1, CB, CCC, CE, UKCA |
| IP Rating | IP20 |
| Number of Normally Open Contacts | 2 |
| Number of Normally Closed Contacts | 0 |
| Maximum Voltage Rating | 690 V AC |
| Compatible with Series | TeSys, TeSys K |
| Terminal Connection Type | Screw Clamp Terminals |
| Current AC | 10 A |
| Frame Size | X, Y, Z |
| IRMS Rated Making Capacity | 110 A at Less than or Equal to 690 V AC conforming to IEC 60947 |
| Ambient Air Temperature For Storage | -58 to 176°F |
| Operating Altitude | 6,561.68 ft |
| Insulation Resistance | Greater than 10 MOhm |
| Rated Insulation Voltage | 690 V IEC 60947-5-1; 600 V UL 60947-5-1; 600 V CSA C22.2 No 60947-5-1 |
| Conventional Free Air Thermal Current | 10 A (at 122°F (50°C)) |
| Product Certifications | CSA, UL, CCC, UKCA, CB Scheme, CE |
| Associated Fuse Rating | 10 A gG at Less than or Equal to 690 V conforming to IEC 60947 |
| Protective Treatment | TC IEC 60068 |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Tightening Torque | 11.51 lbf.in (1.3 N.m) Philips No 2; 11.51 lbf.in (1.3 N.m) pozidriv No 2 |
| Minimum Switching Voltage | 17 V |
| Minimum Switching Current | 5 mA |
| Ambient Air Temperature For Operation | -13 to 122°F (-25 to 50°C) |
| Permissible Short-Time Rating | 80 A 1 s; 60 A 500 ms; 110 A 100 ms |
| Range Compatibility | TeSys K LC1K; TeSys K CA2K; TeSys K CA3K; TeSys K CA4K |
| Rated Operational Voltage | 690 V AC 25 to 400 Hz |
| Pole Contact Composition | 2 NO |
| Non Overlap Distance | 0.02 in (0.5 mm) |
| Product Name | TeSys K |
| Contacts Operation | Instantaneous |
| Connections - Terminals | screw clamp terminals 1 0.00 to 0.00 in² (0.34 to 1.5 mm²)flexible with cable end; screw clamp terminals 1 0.00 to 0.01 in² (0.75 to 4 mm²)flexible without cable end; screw clamp terminals 1 0.00 to 0.01 in² (1.5 to 4 mm²)rigid; screw clamp terminals 2 0.00 to 0.00 in² (0.34 to 1.5 mm²)flexible with cable end; screw clamp terminals 2 0.00 to 0.01 in² (0.75 to 4 mm²)flexible without cable end; screw clamp terminals 2 0.00 to 0.01 in² (1.5 to 4 mm²)rigid |
| Environmental Characteristic | Normal environment |
| Package Quantity | 1 |
