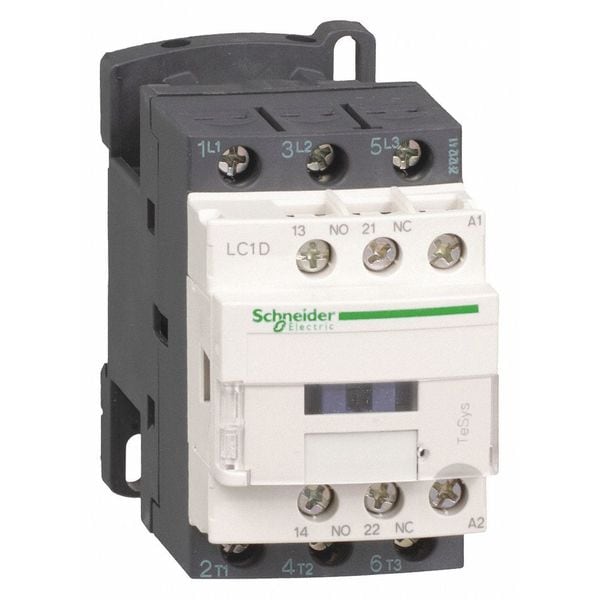

Contactores IEC, TeSys Deca, no reversibles, 12A, 7.5HP a 480VCA, hasta 100kA SCCR, 3 fases, 3 NA, bobina de baja consumo de 12VCC.
| Item | Contactor |
|---|---|
| Full Load Amps | 12 |
| Number of Poles | 3 |
| Coil Volts | 600VAC |
| Height | 77 mm |
| Width | 45 mm |
| Depth | 95 mm |
| Standards | CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1 |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25 to 400 Hz || power circuit <= 300 V DC |
| Poles Description | 3P |
| [Icw] Rated Short-Time Withstand Current | 105 A 40°C - 10 s power circuit || 210 A 40°C - 1 s power circuit || 30 A 40°C - 10 min power circuit || 61 A 40°C - 1 min power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit |
| Mounting Support | plate || rail |
| Insulation Resistance | > 10 MOhm signalling circuit |
| [Ui] Rated Insulation Voltage | power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL |
| Protective Cover | With |
| [Ie] Rated Operational Current | 25 A 60°C) <= 440 V AC AC-1 power circuit || 12 A 60°C) <= 440 V AC AC-3 power circuit || 12 A 60°C) <= 440 V AC AC-3e power circuit |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Maximum Horse Power Rating | 0.5 hp 115 V at AC 50/60 Hz for 1 phase || 2 hp 230/240 V at AC 50/60 Hz for 1 phase || 3 hp 200/208 V at AC 50/60 Hz for 3 phase || 3 hp 230/240 V at AC 50/60 Hz for 3 phase || 7.5 hp 460/480 V at AC 50/60 Hz for 3 phase || 10 hp 575/600 V at AC 50/60 Hz for 3 phase |
| Flame Retardance | V1 conforming to UL 94 |
| Minimum Switching Current | 5 mA signalling circuit |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Overvoltage Category | III |
| Control Circuit Voltage Limits | 0.1 to 0.3 Uc -40-70°C drop-out DC || 0.8 to 1.25 Uc -40-60°C operational DC || 1 to 1.25 Uc 60-70°C operational DC |
| Minimum Switching Voltage | 17 V signalling circuit |
| Permissible Ambient Air Temperature Around The Device | -40-60°C || 60-70°C with derating |
| Climatic Withstand | IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat |
| Utilisation Category | AC-1 || AC-3 || AC-4 || AC-3e |
| Ip Degree Of Protection | IP20 front face IEC 60529 |
| Control Circuit Type | DC low consumption |
| Associated Fuse Rating | 10 A gG signalling circuit IEC 60947-5-1 || 40 A gG <= 690 V type 1 power circuit || 25 A gG <= 690 V type 2 power circuit |
| Motor Power Kw | 3 kW 220 to 230 V AC 50/60 Hz AC-3) || 5.5 kW 380 to 400 V AC 50/60 Hz AC-3) || 5.5 kW 415 to 440 V AC 50/60 Hz AC-3) || 7.5 kW 500 V AC 50/60 Hz AC-3) || 7.5 kW 660 to 690 V AC 50/60 Hz AC-3) || 3.7 kW 400 V AC 50/60 Hz AC-4) || 3 kW 220 to 230 V AC 50/60 Hz AC-3e) || 5.5 kW 380 to 400 V AC 50/60 Hz AC-3e) || 5.5 kW 415 to 440 V AC 50/60 Hz AC-3e) || 7.5 kW 500 V AC 50/60 Hz AC-3e) || 7.5 kW 660 to 690 V AC 50/60 Hz AC-3e) |
| Tightening Torque | power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 1.7 N.m screw clamp terminals pozidriv No 2 |
| Device Short Name | LC1D |
| Contactor Application | resistive load |
| Product Or Component Type | Contactor |
| Fire Resistance | 850°C IEC 60695-2-1 |
| Power Dissipation Per Pole | 0.36 W AC-3 || 1.56 W AC-1 || 0.36 W AC-3e |
| Protective Treatment | THIEC 60068-2-30 |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz power circuit |
| Electrical Durability | 2 Mcycles 12 A AC-3 <= 440 V || 0.8 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 12 A AC-3e <= 440 V |
| Non-Overlap Time | 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact |
| Pole Contact Composition | 3 NO |
| Inrush Power In W | 2.4-2.4 W 20°C) |
| Rated Breaking Capacity | 250 A 440 V power circuit IEC 60947 |
| Pollution Degree | 3 |
| Connections - Terminals | power circuit screw clamp terminals 1 1-4 mm² flexible without cable end || power circuit screw clamp terminals 2 1-4 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || power circuit screw clamp terminals 1 1-4 mm² solid without cable end || power circuit screw clamp terminals 2 1-4 mm² solid without cable end || control circuit screw clamp terminals 1 1-4 mm² flexible without cable end || control circuit screw clamp terminals 2 1-4 mm² flexible without cable end || control circuit screw clamp terminals 1 1-4 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 1 1-4 mm² solid without cable end || control circuit screw clamp terminals 2 1-4 mm² solid without cable end |
| Product Certifications | UL || DNV || RINA || GOST || LROS (Lloyds register of shipping) || CSA || CCC || BV || GL || UKCA |
| Mechanical Robustness | vibrations contactor open 2 Gn, 5 to 300 Hz) || vibrations contactor closed 4 Gn, 5 to 300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms) |
| Time Constant | 40 ms |
| Mechanical Durability | 30 Mcycles |
| Hold-In Power Consumption In W | 2.4-2.4 W 20°C |
| Operating Time | 65.45 to 88.55 ms closing || 20 to 30 ms opening |
| Contact Compatibility | M5 |
| Coil Technology | built-in bidirectional peak limiting diode suppressor |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Maximum Operating Rate | 3600 cyc/h 60°C |
| Irms Rated Making Capacity | 250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1 |
| [Uc] Control Circuit Voltage | 12 V DC |
| [Ith] Conventional Free Air Thermal Current | 25 A 60°C power circuit || 10 A 60°C signalling circuit |
| Compatibility Code | LC1D |
| Auxiliary Contacts Type | mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1 |
| Range of Product | TeSys Deca |
| Pvc Free | Yes |
| Package Quantity | 1 |
