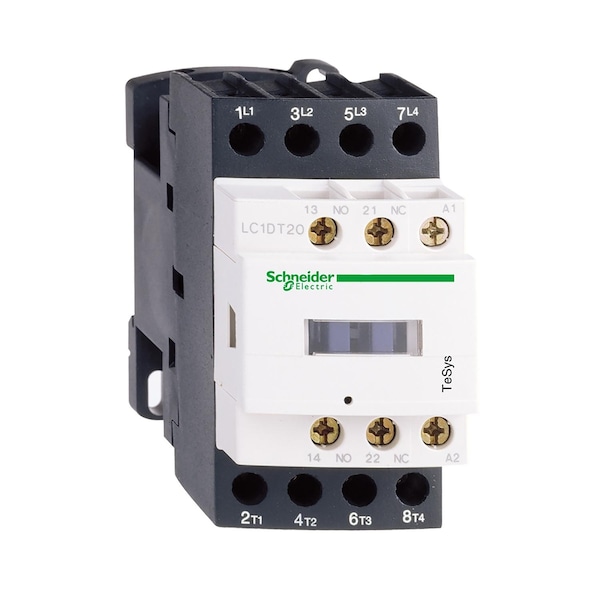

Contactor IEC, TeSys Deca, no reversible, resistivo de 25A, 4 polos, 2 NA y 2 NC, bobina de 208VCA 50/60Hz, estilo abierto.
| Item | Contactor 208V |
|---|---|
| Height | 85 mm |
| Width | 45 mm |
| Depth | 92 mm |
| Standards | EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 |
| Power Dissipation Per Pole | 1.56 W AC to 1 |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25 to 400 Hz |
| Irms Rated Making Capacity | 250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1 |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Electrical Durability | 0.8 Mcycles 25 A AC-1 <= 440 V |
| Contactor Application | resistive load |
| [Ui] Rated Insulation Voltage | power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL |
| Pollution Degree | 3 |
| Operating Time | 12 to 22 ms closing || 4 to 19 ms opening |
| Product Or Component Type | Contactor |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Mechanical Durability | 15 Mcycles |
| Maximum Operating Rate | 3600 cyc/h 60°C |
| Pole Contact Composition | 2 NO + 2 NC |
| Control Circuit Voltage Limits | 0.3 to 0.6 Uc -40-60°C drop-out AC 50/60 Hz || 0.8 to 1.1 Uc -40-60°C operational AC 50 Hz || 0.85 to 1.1 Uc -40-60°C operational AC 60 Hz |
| Permissible Ambient Air Temperature Around The Device | -40-60°C || 60-70°C with derating |
| Inrush Power In Va | 70-70 VA 60 Hz 0.75 20°C) || 70-70 VA 50 Hz 0.75 20°C) |
| Contact Compatibility | M6 |
| Protective Treatment | THIEC 60068-2-30 |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Overvoltage Category | III |
| Ip Degree Of Protection | IP20 front face IEC 60529 |
| Poles Description | 4P |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Non-Overlap Time | 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact |
| Compatibility Code | LC1D |
| [Uc] Control Circuit Voltage | 208 V AC 50/60 Hz |
| Climatic Withstand | IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat |
| Auxiliary Contacts Type | mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1 |
| Fire Resistance | 850°C IEC 60695-2-1 |
| Protective Cover | With |
| Minimum Switching Current | 5 mA signalling circuit |
| Connections - Terminals | control circuit lugs-ring terminals 8 mm || power circuit lugs-ring terminals 8 mm |
| Mounting Support | plate || rail |
| Tightening Torque | control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals flat Ø 8 mm M3.5 || power circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || control circuit 1.7 N.m lugs-ring terminals pozidriv No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals pozidriv No 2 M3.5 |
| Coil Technology | without built-in suppressor module |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz power circuit |
| Utilisation Category | AC-1 || AC-3 || AC-3e || AC-4 |
| [Ith] Conventional Free Air Thermal Current | 25 A 60°C power circuit || 10 A 60°C signalling circuit |
| Rated Breaking Capacity | 250 A 440 V power circuit IEC 60947 |
| Heat Dissipation | 2-3 W 50/60 Hz |
| [Ie] Rated Operational Current | 25 A 60°C) <= 440 V AC AC-1 power circuit |
| Associated Fuse Rating | 10 A gG signalling circuit IEC 60947-5-1 || 40 A gG <= 690 V type 1 power circuit || 25 A gG <= 690 V type 2 power circuit |
| Device Short Name | LC1D |
| Minimum Switching Voltage | 17 V signalling circuit |
| Insulation Resistance | > 10 MOhm signalling circuit |
| Product Certifications | UL || CSA || CCC || EAC || UKCA || CB || EU-RO-MR by DNV-GL |
| Flame Retardance | V1 conforming to UL 94 |
| [Icw] Rated Short-Time Withstand Current | 105 A 40°C - 10 s power circuit || 210 A 40°C - 1 s power circuit || 30 A 40°C - 10 min power circuit || 61 A 40°C - 1 min power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit |
| Control Circuit Type | AC 50/60 Hz |
| Mechanical Robustness | vibrations contactor open 2 Gn, 5 to 300 Hz) || vibrations contactor closed 4 Gn, 5 to 300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms) |
| Hold-In Power Consumption In Va | 7.5-7.5 VA 60 Hz 0.3 20°C) || 7-7 VA 50 Hz 0.3 20°C) |
| Pvc Free | Yes |
| Range of Product | TeSys Deca |
| Package Quantity | 1 |
