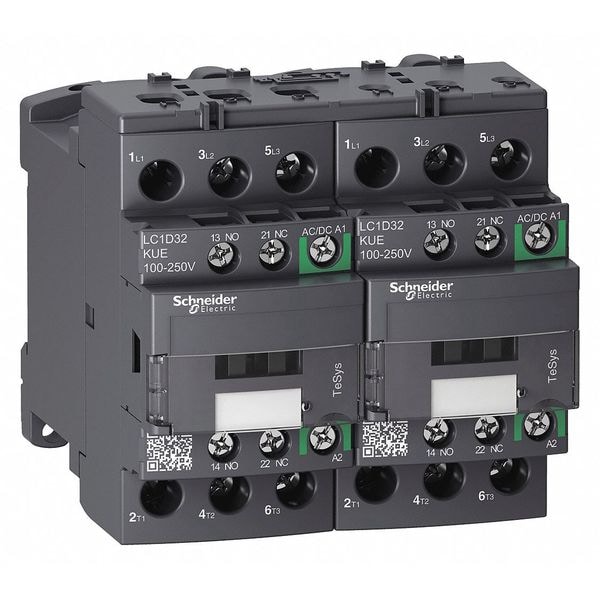

Contactador magnético IEC, 3 polos, 100 a 250 V CA/CC, 32 A, Reversión: Sí.
| Full Load Amps-Inductive | 32 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 3 |
| Coil Volts | 100 to 250 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 5 hp |
| Height | 3.35 in |
| HP @ 3 Phase - 208V | 10 hp |
| Width | 3.54 in |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 575V | 25 hp |
| Depth | 3.62 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 20 hp |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Frame / Series / Class / Code | TeSys |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| NEMA Size | Not Applicable |
| Series | TeSys Deca |
| Auxiliary Contact Form | 1NO/1NC |
| IP Rating | IP20 |
| Number of Auxillary Contacts | 2 |
| Mounting Style | DIN Rail, Plate |
| Reversing Capability | Reversing |
| Overall Depth | 3.62 in |
| Embedded Surge Suppressor | No |
| Maximum Operating Temperature | 140 deg F |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Overall Width | 3.54 in |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Overall Height | 3.35 in |
| Contactor Style | IEC |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| NEMA Enclosure Material | Not Applicable |
| Frequency | 50/60 Hz |
| Terminal Connection Type | Screw Clamp Terminals |
| Full Load Current - Resistive | 50 A |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Electrical Operating Durability | 2,100,000, 900,000 |
| Horsepower @ Three Phase - 480V AC | 20 HP |
| Maximum Voltage Rating | 690 V AC |
| Minimum Operating Temperature | -40 deg F |
| Mechanical Operating Durability | 15,000,000 |
| Coil Voltage | 100-250V AC/DC |
| Full Load Current - Inductive | 32 A |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Number of Normally Open Main Contacts | 3 |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Includes Auxiliary Contacts | Yes |
| NEMA Enclosure Rating | No Enclosure |
| Mounts On | Plate, Rail |
| Electrical Connection | Screw Clamp Terminals |
| Watts Loss | 1.1W |
| Mechanical Durability | 15 Mcycles |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit) |
| Electrical Durability | 2.1 Mcycles (29 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V) |
| Non-Overlap Time | 1.5 msec |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit), 60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit) |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit) |
| Max. Operating Watts | 7.5 kW (at 220 to 230V AC 50 Hz), 15 kW (at 380 to 400V AC 50 Hz), 15 kW (at 415V AC 50 Hz), 15 kW (at 440V AC 50 Hz), 18.5 kW (at 500V AC 50 Hz), 18.5 kW (at 660 to 690V AC 50 Hz) |
| Switching Current | 5 mA (Signalling Circuit) |
| Impedance | 2 mOhm |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Impulse Withstand Voltage | 6 kV |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit) |
| Includes Protective Cover | Yes |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Operating Time | 45 to 55 ms (Closing), 20 to 90 ms (Opening) |
| Hold VA | 1.6 VA |
| Net Weight | 0.923 kg |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Fire Rating | UL 94 V1 |
| Operating Speed | 3600 cycles per hr |
| Application | Motor Control, Resistive Load |
| Max. Temperature | 850°C |
| Inrush VA | 25 VA |
| Rated Breaking Capacity | 550 A @ 440V |
| Switching Voltage | 17 V (Signalling Circuit) |
| Overvoltage Category | CAT III |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit) |
| Rated Voltage | 690V AC |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Working Height | Up to 9,842.52 ft |
| Rated Insulation Volts | 690V |
| Package Quantity | 1 |
