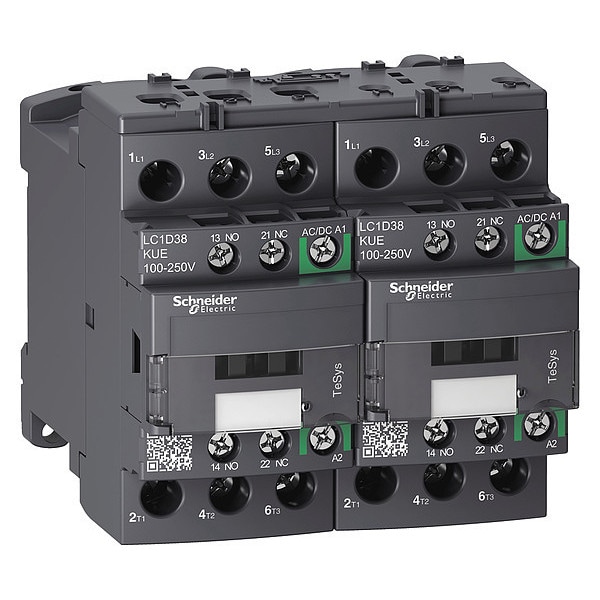

Contacto magnético IEC, 3 polos, 100 a 250 V CA/CC, 38 A, Reversión: Sí
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 38 A |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 3 |
| Coil Volts | 100 to 250 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 5 hp |
| Height | 3.35 in |
| Width | 3.54 in |
| HP @ 3 Phase - 208V | 10 hp |
| HP @ 3 Phase - 575V | 25 hp |
| Depth | 3.62 in |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 480V | 20 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO, 1NC |
| Frame / Series / Class / Code | TeSys |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO/1NC |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| IP Rating | IP20 |
| Coil Voltage | 100-250V AC/DC |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Maximum Operating Temperature | 140 deg F |
| Frequency | 50/60 Hz |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Maximum Voltage Rating | 690 V AC |
| Reversing Capability | Reversing |
| Embedded Surge Suppressor | No |
| Number of Auxillary Contacts | 2 |
| Contactor Style | IEC |
| Mounting Style | DIN Rail, Plate |
| NEMA Enclosure Rating | No Enclosure |
| Mechanical Operating Durability | 15,000,000 |
| Full Load Current - Inductive | 38 A |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Three Phase - 480V AC | 20 HP |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Overall Height | 3.35 in |
| Overall Depth | 3.62 in |
| Number of Normally Open Main Contacts | 3 |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Includes Auxiliary Contacts | Yes |
| NEMA Enclosure Material | Not Applicable |
| Electrical Operating Durability | 1,800,000, 900,000 |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Overall Width | 3.54 in |
| Terminal Connection Type | Screw Clamp Terminals |
| Full Load Current - Resistive | 50 A |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Non-Overlap Time | 1.5 msec |
| Inrush VA | 25 VA |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit) |
| Operating Speed | 3600 cycles per hr |
| Rated Insulation Volts | 690V |
| Fire Rating | UL 94 V1 |
| Overvoltage Category | CAT III |
| Switching Current | 5 mA (Signalling Circuit) |
| Impulse Withstand Voltage | 6 kV |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 430 A (at 40°C for 1 s Power Circuit), 60 A (at 40°C for 10 min Power Circuit), 150 A (at 40°C for 1 min Power Circuit), 310 A (at 40°C for 10 s Power Circuit) |
| Hold VA | 1.6 VA |
| Max. Temperature | 850°C |
| Rated Breaking Capacity | 550 A @ 440V |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Switching Voltage | 17 V (Signalling Circuit) |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C) |
| Application | Motor Control, Resistive Load |
| Mounts On | Plate, Rail |
| Operating Time | 45 to 55 ms (Closing), 20 to 90 ms (Opening) |
| Mechanical Durability | 15 Mcycles |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit) |
| Max. Operating Watts | 9 kW (at 220 to 230V AC 50 Hz), 18.5 kW (at 380 to 400V AC 50 Hz), 18.5 kW (at 415V AC 50 Hz), 18.5 kW (at 440V AC 50 Hz), 18.5 kW (at 500V AC 50 Hz), 18.5 kW (at 660 to 690V AC 50 Hz) |
| Rated Voltage | 690V AC |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Net Weight | 0.933 kg |
| Working Height | Up to 9,842.52 ft |
| Watts Loss | 1.1W |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit) |
| Includes Protective Cover | Yes |
| Impedance | 2 mOhm |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Electrical Durability | 1.8 Mcycles (35 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V) |
| Electrical Connection | Screw Clamp Terminals |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit) |
| Package Quantity | 1 |
