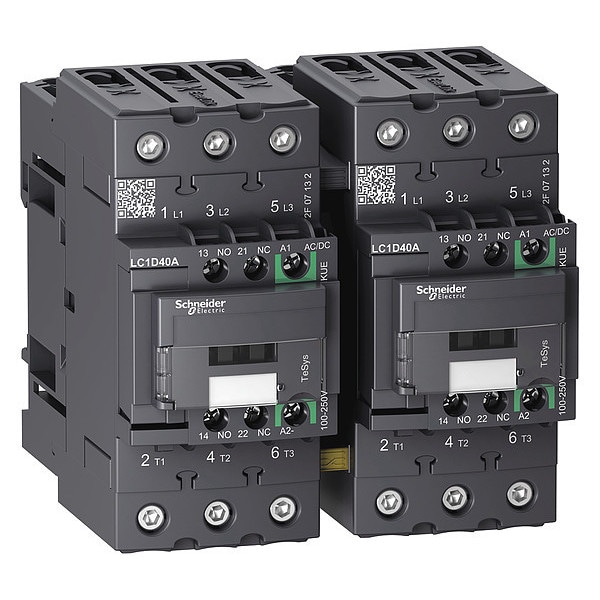

Contacto magnético IEC, 3 polos, 100 a 250 V CA/CD, 40 A, Reversión: Sí
| Full Load Amps-Inductive | 40 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 60 A |
| Number of Poles | 3 |
| Coil Volts | 100 to 250 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 3 hp |
| Height | 4.8 in |
| HP @ 1 Phase - 240V | 5 hp |
| HP @ 3 Phase - 208V | 10 hp |
| Width | 4.69 in |
| Depth | 4.72 in |
| HP @ 3 Phase - 575V | 30 hp |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 480V | 30 hp |
| Enclosure NEMA Rating | No Enclosure |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Aux. Contact Configuration | 1NO, 1NC |
| Frame / Series / Class / Code | TeSys |
| Hz | 50/60 |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | 1NO/1NC |
| Series | TeSys Deca |
| IP Rating | IP20 |
| Overall Height | 4.8 in |
| Coil Voltage | 100-250V AC/DC |
| NEMA Enclosure Material | Not Applicable |
| Mechanical Operating Durability | 6,000,000 |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Embedded Surge Suppressor | No |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Full Load Current - Resistive | 60 A |
| Overall Width | 4.69 in |
| Mounting Style | DIN Rail, Plate |
| Full Load Current - Inductive | 40 A |
| Electrical Operating Durability | 2,000,000, 700,000 |
| NEMA Enclosure Rating | No Enclosure |
| Number of Normally Open Main Contacts | 3 |
| Overall Depth | 4.72 in |
| Number of Auxillary Contacts | 2 |
| Maximum Voltage Rating | 690 V AC |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Contactor Style | IEC |
| Horsepower @ Three Phase - 480V AC | 30 HP |
| Terminal Connection Type | Screw Clamp Terminals |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 600V AC | 30 HP |
| Minimum Operating Temperature | -40 deg F |
| Includes Auxiliary Contacts | Yes |
| Reversing Capability | Reversing |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Max. Temperature | 850°C |
| Electrical Durability | 2 Mcycles (35 A, AC-3, Less than 440 V); 0.7 Mcycles (60 A, AC-1, Less than 440 V) |
| Hold VA | 1.8 VA |
| Mechanical Durability | 6 Mcycles |
| Fire Rating | UL 94 V1 |
| Rated Insulation Volts | 690V |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C) |
| Includes Protective Cover | Yes |
| Switching Current | 5 mA (Signalling Circuit) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Impulse Withstand Voltage | 6 kV |
| Fuse Amps | 10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Inrush VA | 18 VA |
| Non-Overlap Time | 1.5 msec |
| Impedance | 1.5 mOhm |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Rated Breaking Capacity | 800 A @ 440V |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit) |
| Operating Time | 55 to 65 ms (Closing), 20 to 120 ms (Opening) |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Operating Speed | 3600 cycles per hr |
| Rated Voltage | 690V AC |
| Switching Voltage | 17 V (Signalling Circuit) |
| Overvoltage Category | CAT III |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit) |
| Mounts On | Plate, Rail |
| Max. Operating Watts | 11 kW (at 220 to 230V AC 50 Hz), 18.5 kW (at 380 to 400V AC 50 Hz), 22 kW (at 415V AC 50 Hz), 22 kW (at 440V AC 50 Hz), 22 kW (at 500V AC 50 Hz), 30 kW (at 660 to 690V AC 50 Hz) |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Application | Motor Control, Resistive Load |
| Working Height | Up to 9,842.52 ft |
| Watts Loss | 1.2W |
| Net Weight | 2.154 kg |
| Package Quantity | 1 |
