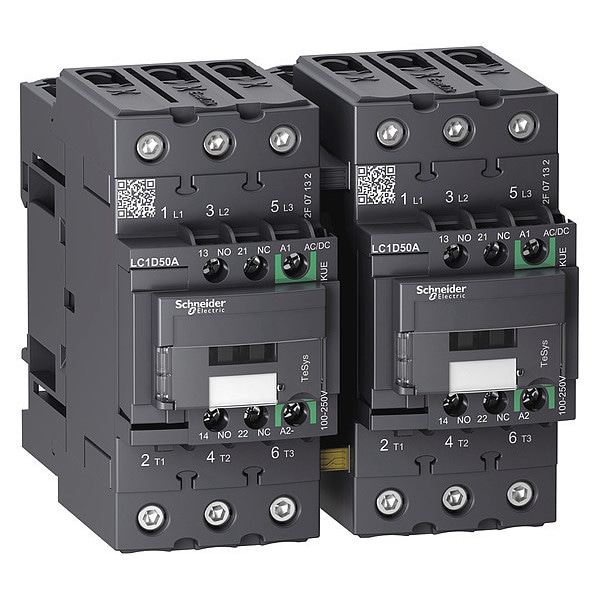

Contacto magnético IEC, 3 polos, 100 a 250 V CA/CC, 50 A, Reversible: Sí.
| HP @ 1 Phase - 120V | 3 hp |
|---|---|
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 40 hp |
| Full Load Amps-Inductive | 50 A |
| HP @ 3 Phase - 575V | 40 hp |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Full Load Amps-Resistive | 80 A |
| Width | 4.69 in |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Coil Volts | 100 to 250 V AC/DC |
| Height | 4.8 in |
| HP @ 3 Phase - 208V | 15 hp |
| Reversing | Yes |
| Frame / Series / Class / Code | TeSys |
| Depth | 4.72 in |
| Aux. Contact Configuration | 1NO, 1NC |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 240V | 15 hp |
| Item | IEC Magnetic Contactor |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO/1NC |
| NEMA Size | Not Applicable |
| Series | TeSys Deca |
| IP Rating | IP20 |
| Number of Auxillary Contacts | 2 |
| Frequency | 50/60 Hz |
| Minimum Operating Temperature | -40 deg F |
| Coil Voltage | 100-250V AC/DC |
| Contactor Style | IEC |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Number of Normally Open Main Contacts | 3 |
| Full Load Current - Inductive | 50 A |
| Terminal Connection Type | Screw Clamp Terminals |
| Electrical Operating Durability | 1,800,000, 500,000 |
| Horsepower @ Three Phase - 208V AC | 15 HP |
| Includes Auxiliary Contacts | Yes |
| Mounting Style | DIN Rail, Plate |
| Overall Width | 4.69 in |
| NEMA Enclosure Rating | No Enclosure |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Mechanical Operating Durability | 6,000,000 |
| Reversing Capability | Reversing |
| Full Load Current - Resistive | 80 A |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Three Phase - 600V AC | 40 HP |
| Maximum Voltage Rating | 690 V AC |
| Overall Depth | 4.72 in |
| Embedded Surge Suppressor | No |
| Overall Height | 4.8 in |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Fuse Amps | 10 A (Signalling Circuit), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit) |
| Application | Motor Control, Resistive Load |
| Operating Time | 55 to 65 ms (Closing), 20 to 120 ms (Opening) |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 400 A (at 40°C for 10 s Power Circuit), 810 A (at 40°C for 1 s Power Circuit), 84 A (at 40°C for 10 min Power Circuit), 208 A (at 40°C for 1 min Power Circuit) |
| Operating Speed | 3600 cycles per hr |
| Mounts On | Plate, Rail |
| Switching Voltage | 17 V (Signalling Circuit) |
| Impulse Withstand Voltage | 6 kV |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Rated Breaking Capacity | 900 A @ 440V |
| Rated Insulation Volts | 690V |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C) |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Hold VA | 1.8 VA |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Max. Operating Watts | 15 kW (at 220 to 230V AC 50 Hz), 22 kW (at 380 to 400V AC 50 Hz), 25 kW (at 415V AC 50 Hz), 30 kW (at 440V AC 50 Hz), 30 kW (at 500V AC 50 Hz), 33 kW (at 660 to 690V AC 50 Hz) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Working Height | Up to 9,842.52 ft |
| Mechanical Durability | 6 Mcycles |
| Non-Overlap Time | 1.5 msec |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit) |
| Electrical Durability | 1.8 Mcycles (42 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V) |
| Net Weight | 2.164 kg |
| Fire Rating | UL 94 V1 |
| Rated Voltage | 690V AC |
| Overvoltage Category | CAT III |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Switching Current | 5 mA (Signalling Circuit) |
| Max. Temperature | 850°C |
| Inrush VA | 18 VA |
| Watts Loss | 1.2W |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 900 A @ 440V (Power Circuit) |
| Impedance | 1.5 mOhm |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Includes Protective Cover | Yes |
| Package Quantity | 1 |
