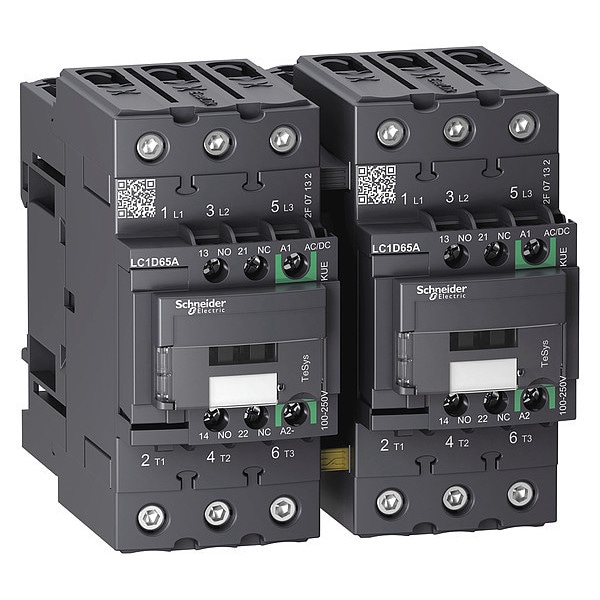

Contacto magnético IEC, 3 polos, 100 a 250 V CA/CC, 65 A, Reversión: Sí.
| Full Load Amps-Inductive | 65 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 100 to 250 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 5 hp |
| HP @ 1 Phase - 240V | 10 hp |
| Height | 4.8 in |
| Width | 4.69 in |
| HP @ 3 Phase - 208V | 20 hp |
| Depth | 4.72 in |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 3 Phase - 240V | 20 hp |
| HP @ 3 Phase - 480V | 40 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Frame / Series / Class / Code | TeSys |
| Hz | 50/60 |
| Series | TeSys Deca |
| Auxiliary Contact Form | 1NO/1NC |
| NEMA Size | Not Applicable |
| IP Rating | IP20 |
| Horsepower @ Single Phase - 240V AC | 10 HP |
| Maximum Operating Temperature | 140 deg F |
| Mechanical Operating Durability | 6,000,000 |
| Horsepower @ Three Phase - 240V AC | 20 HP |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Overall Depth | 4.72 in |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Contactor Style | IEC |
| NEMA Enclosure Material | Not Applicable |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Three Phase - 208V AC | 20 HP |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Horsepower @ Single Phase - 120V AC | 5 HP |
| Coil Voltage | 100-250V AC/DC |
| Frequency | 50/60 Hz |
| Includes Auxiliary Contacts | Yes |
| Embedded Surge Suppressor | No |
| Reversing Capability | Reversing |
| Number of Auxillary Contacts | 2 |
| Overall Width | 4.69 in |
| Overall Height | 4.8 in |
| Mounting Style | DIN Rail, Plate |
| Full Load Current - Inductive | 65 A |
| Number of Normally Open Main Contacts | 3 |
| Electrical Operating Durability | 1,800,000, 500,000 |
| Full Load Current - Resistive | 80 A |
| Minimum Operating Temperature | -40 deg F |
| Maximum Voltage Rating | 690 V AC |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Working Height | Up to 9,842.52 ft |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit) |
| Net Weight | 2.174 kg |
| Fuse Amps | 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit) |
| Includes Protective Cover | Yes |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit) |
| Rated Insulation Volts | 690V |
| Inrush VA | 18 VA |
| Application | Motor Control, Resistive Load |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Overvoltage Category | CAT III |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Non-Overlap Time | 1.5 msec |
| Watts Loss | 1.2W |
| Operating Speed | 3600 cycles per hr |
| Impedance | 1.5 mOhm |
| Impulse Withstand Voltage | 6 kV |
| Rated Voltage | 690V AC |
| Max. Temperature | 850°C |
| Switching Current | 5 mA (Signalling Circuit) |
| Max. Operating Watts | 18.5 kW (at 220 to 230V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz), 37 kW (at 415V AC 50 Hz), 37 kW (at 440V AC 50 Hz), 37 kW (at 500V AC 50 Hz), 37 kW (at 660 to 690V AC 50 Hz) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Rated Breaking Capacity | 1000 A @ 440V |
| Electrical Durability | 1.8 Mcycles (57 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V) |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Operating Time | 55 to 65 ms (Closing), 20 to 120 ms (Opening) |
| Mechanical Durability | 6 Mcycles |
| Fire Rating | UL 94 V1 |
| Mounts On | Plate, Rail |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Hold VA | 1.8 VA |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Package Quantity | 1 |
