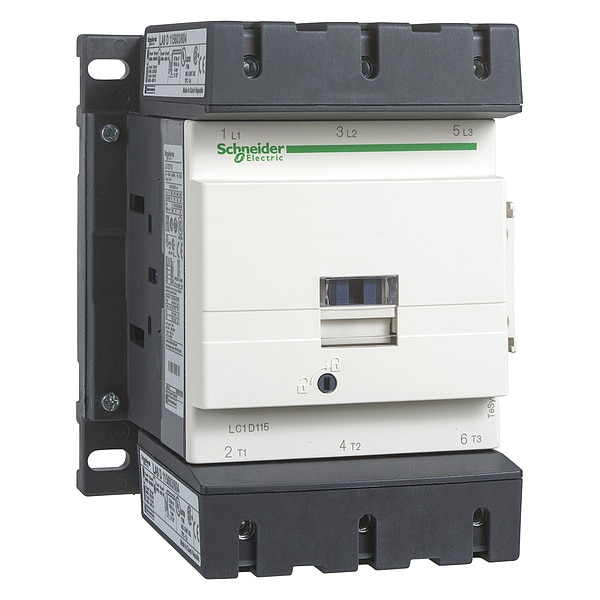

Contacto magnético IEC, 3 polos, 110 V CA, 115 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 115 A |
| Full Load Amps-Resistive | 200 A |
| Number of Poles | 3 |
| Coil Volts | 110 V AC |
| Height | 158 mm |
| Width | 120 mm |
| HP @ 3 Phase - 208V | 30 hp |
| HP @ 3 Phase - 240V | 40 hp |
| HP @ 3 Phase - 575V | 100 hp |
| Depth | 136 mm |
| HP @ 3 Phase - 480V | 75 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, BV, UL, GL, DNV, LROS, RINA, CSA, CCC, GOST, UKCA, CE, THIEC 60068-2-30 |
| Series | LC1D |
| Electrical Connection | Screw Clamp Terminals |
| Includes Protective Cover | Yes |
| Inrush VA | 280 to 350 VA |
| Rated Insulation Volts | 600/690V, 600/1000V |
| Mounts On | Plate, Rail |
| Max. Operating Watts | 30 kW (at 220 to 230V AC 50/60 Hz AC-3), 55 kW (at 380 to 400V AC 50/60 Hz AC-3), 59 kW 415 to (at 440V AC 50/60 Hz AC-3), 75 kW (at 500V AC 50/60 Hz AC-3), 80 kW (at 660 to 690V AC 50/60 Hz AC-3), 65 kW (at 1000V AC 50/60 Hz AC-3), 18.5 kW (at 400V AC 50/60 Hz AC-4), 30 kW (at 220 to 230V AC 50/60 Hz AC-3e), 55 kW (at 380 to 400V AC 50/60 Hz AC-3e), 59 kW 415 to (at 440V AC 50/60 Hz AC-3e), 75 kW (at 500V AC 50/60 Hz AC-3e), 80 kW (at 660 to 690V AC 50/60 Hz AC-3e), 65 kW (at 1000V AC 50/60 Hz AC-3e) |
| Impedance | 0.6 mOhm |
| Hold VA | 2 to 18 VA |
| Rated Short-Time Withstand Current | 250 A (at 40°C for 10 min Power Circuit), 550 A (at 40°C for 1 min Power Circuit), 950 A (at 40°C for 10 s Power Circuit), 1100 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open) |
| Working Height | Up to 9,842.52 ft |
| Impulse Withstand Voltage | 8 kV |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Non-Overlap Time | 1.5 msec |
| Mechanical Durability | 8 Mcycles |
| Rated Making Capacity | 1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| IP Rating | IP20 |
| Operating Speed | 2400 cycles per hr |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.5 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.15 Uc (at -40-55°C 50/60 Hz), 1 to 1.15 Uc (at 55-70°C 50/60 Hz) |
| Net Weight | 2.5 kg |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Environmental Attributes | Mercury Free, PVC Free, Pollution Degree 3 |
| Max. Temperature | 850°C |
| Fire Rating | UL 94 V1 |
| Electrical Durability | 0.8 Mcycles (200 A, AC-1, Less than 440 V); 0.95 Mcycles (115 A, AC-3, Less than 440 V); 0.95 Mcycles (115 A, AC-3e, Less than 440 V) |
| Operating Time | 6 to 20 ms (Opening), 20 to 50 ms (Closing) |
| Tightening Torque | 1.2 Nm (Control Circuit), 12 Nm (Power Circuit) |
| Fuse Amps | 250 A (Type 1 Power Circuit), 200 A (Type 2 Power Circuit), 10 A (Signalling Circuit) |
| Rated Voltage | 300V DC, 1000V AC |
| Rated Breaking Capacity | 1100 A @ 440V |
| Switching Current | 5 mA (Signalling Circuit) |
| Watts Loss | 3 to 8W |
| Overvoltage Category | CAT III |
| Switching Voltage | 17 V (Signalling Circuit) |
| Thermal Amperage | 200 A (at 60°C Power Circuit) |
| Application | Motor Control, Resistive Load |
| Package Quantity | 1 |
