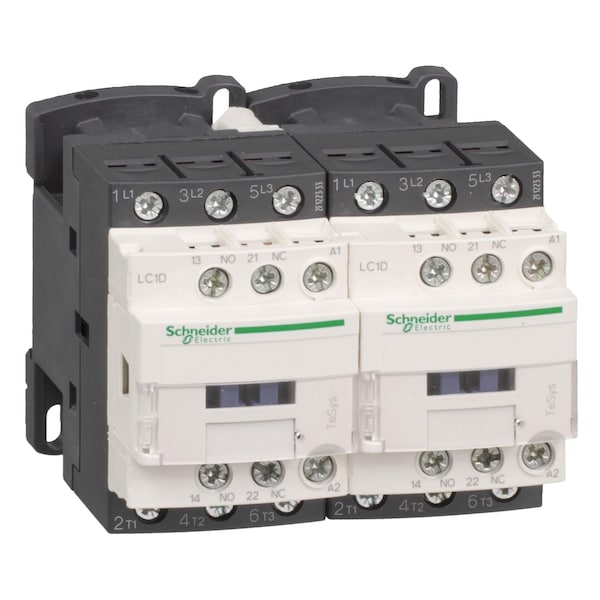

Contacto magnético IEC, 3 polos, 110 V CA, 12 A.
| Full Load Amps-Inductive | 12 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Action | Reversing |
| Full Load Amps-Resistive | 25 A |
| Number of Poles | 3 |
| Coil Volts | 110 V AC |
| HP @ 1 Phase - 240V | 2 hp |
| Height | 77 mm |
| Width | 90 mm |
| HP @ 3 Phase - 208V | 3 hp |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Depth | 86 mm |
| HP @ 3 Phase - 480V | 7 1/2 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30 |
| Series | LC2D |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Application | Motor Control, Resistive Load |
| Impulse Withstand Voltage | 6 kV |
| Watts Loss | 2 to 3W |
| Rated Making Capacity | 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Mounts On | Plate, Rail |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Impedance | 2.5 mOhm |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Operating Speed | 3600 cycles per hr |
| Operating Time | 12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Fuse Amps | 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit) |
| Working Height | Up to 9,842.52 ft |
| Max. Temperature | 850°C |
| Non-Overlap Time | 1.5 msec |
| IP Rating | IP20 |
| Rated Insulation Volts | 600/690V |
| Electrical Connection | Screw Clamp Terminals |
| Max. Operating Watts | 3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit) |
| Mechanical Durability | 15 Mcycles |
| Includes Protective Cover | Yes |
| Rated Short-Time Withstand Current | 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Electrical Durability | 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V) |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Rated Breaking Capacity | 250 A @ 440V |
| Overvoltage Category | CAT III |
| Inrush VA | 70 VA |
| Net Weight | 0.697 kg |
| Fire Rating | UL 94 V1 |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Switching Current | 5 mA (Signalling Circuit) |
| Rated Voltage | 690V AC, 300V DC |
| Ambient Air Temperature For Storage | -76 to 176°F |
| Rated Short Time Withstand Current | 30 A 104°F (40°C) - 10 min for power circuit; 61 A 104°F (40°C) - 1 min for power circuit; 105 A 104°F (40°C) - 10 s for power circuit; 210 A 104°F (40°C) - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Inrush Power in VA | 70 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 70 VA 50 Hz cos phi 0.75 (at 68°F (20°C)) |
| Contactor Application | Resistive load |
| Rated Operational Current | 25 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit |
| Heat Dissipation | 2 to 3 W 50/60 Hz |
| Mechanical Robustness | Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Coil Technology | Without built-in suppressor module |
| Power Pole Contact Composition | 3 NO |
| Protective Treatment | THIEC 60068-2-30 |
| Control Circuit Voltage | 110 V AC 50/60 Hz |
| Motor Power HP | 1 hp at 115 V AC 60 Hz for 1 phase motors; 2 hp at 230/240 V AC 60 Hz for 1 phase motors; 3 hp at 200/208 V AC 60 Hz for 3 phase motors; 3 hp at 230/240 V AC 60 Hz for 3 phase motors; 7.5 hp at 460/480 V AC 60 Hz for 3 phase motors; 10 hp at 575/600 V AC 60 Hz for 3 phase motors |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Flame Retardance | V1 conforming to UL 94 |
| Control Circuit Type | AC 50/60 Hz |
| Device Presentation | Preassembled with reversing power busbar |
| Product Certifications | DNV; CSA; CCC; UL; GL; LROS (Lloyds register of shipping); BV; RINA; GOST; UKCA |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Utilisation Category | AC-3; AC-1; AC-3e |
| Motor Power KW | 3 kW at 220 to 230 V AC 50 Hz; 5.5 kW at 380 to 400 V AC 50 Hz; 5.5 kW at 415 V AC 50 Hz; 5.5 kW at 440 V AC 50 Hz; 7.5 kW at 500 V AC 50 Hz; 7.5 kW at 660 to 690 V AC 50 Hz |
| IRMS Rated Making Capacity | 250 A at 440 V for power circuit conforming to IEC 60947; 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 40 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 25 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Mounting Support | Rail |
| Interlocking Type | Mechanical |
| Front Cover | With |
| Connections - Terminals | Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Power circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)solid; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)solid; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)solid; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)solid |
| Rated Insulation Voltage | Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Pollution Degree | 3 |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 25 A (at 140°F (60°C)) for power circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Product Or Component Type | Reversing contactor |
| Power Dissipation Per Pole | 1.56 W AC-1; 0.36 W AC-3; 0.36 W AC-3e |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Ambient Air Temperature For Operation | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Product Name | TeSys, TeSys D Deca |
| Poles Description | 3P |
| Hold-In Power Consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 7 VA 50 Hz cos phi 0.3 (at 68°F (20°C)) |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Climatic Withstand | IACS E10; IEC 60947-1 Annex Q category D |
| Package Quantity | 1 |
