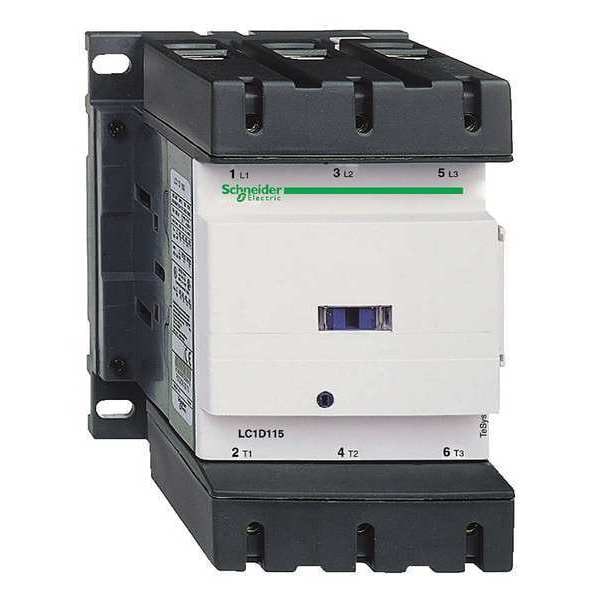

Contactador magnético IEC, 3 polos, 110 V CA, 150 A
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 150 A |
| Full Load Amps-Resistive | 200 A |
| Number of Poles | 3 |
| Coil Volts | 110 V AC |
| Height | 158 mm |
| HP @ 3 Phase - 208V | 40 hp |
| Width | 120 mm |
| HP @ 3 Phase - 575V | 125 hp |
| HP @ 3 Phase - 240V | 50 hp |
| Depth | 136 mm |
| HP @ 3 Phase - 480V | 100 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CCC, GOST, DNV, UL, LROS, BV, GL, RINA, CSA, UKCA, CE, THIEC 60068-2-30 |
| Series | LC1D |
| Rated Breaking Capacity | 1400 A @ 440V |
| Environmental Attributes | Mercury Free, PVC Free, Pollution Degree 3 |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Operating Time | 20 to 35 ms (Closing), 40 to 75 ms (Opening) |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Max. Operating Watts | 40 kW (at 220 to 230V AC 50/60 Hz AC-3), 75 kW (at 380 to 400V AC 50/60 Hz AC-3), 80 kW 415 to (at 440V AC 50/60 Hz AC-3), 90 kW (at 500V AC 50/60 Hz AC-3), 100 kW (at 660 to 690V AC 50/60 Hz AC-3), 75 kW (at 1000V AC 50/60 Hz AC-3), 22 kW (at 400V AC 50/60 Hz AC-4), 40 kW (at 220 to 230V AC 50/60 Hz AC-3e), 75 kW (at 380 to 400V AC 50/60 Hz AC-3e), 80 kW (at 415 to 440V AC 50/60 Hz AC-3e), 90 kW (at 500V AC 50/60 Hz AC-3e), 100 kW (at 660 to 690V AC 50/60 Hz AC-3e), 75 kW (at 1000V AC 50/60 Hz AC-3e) |
| Electrical Connection | Screw Clamp Terminals |
| Includes Protective Cover | Yes |
| Hold VA | 2 to 18 VA |
| Fuse Amps | 10 A (Signalling Circuit), 315 A (Type 1 Power Circuit), 250 A (Type 2 Power Circuit) |
| Overvoltage Category | CAT III |
| Fire Rating | UL 94 V1 |
| Operating Speed | 1200 cycles per hr |
| Watts Loss | 3 to 4.5W |
| Max. Temperature | 850°C |
| Working Height | Up to 9,842.52 ft |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Application | Motor Control, Resistive Load |
| Inrush VA | 280 to 350 VA |
| IP Rating | IP20 |
| Electrical Durability | 0.85 Mcycles (150 A, AC-3, Less than 440 V); 1 Mcycles (200 A, AC-1, Less than 440 V); 0.85 Mcycles (150 A, AC-3e, Less than 440 V) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Switching Voltage | 17 V (Signalling Circuit) |
| Mechanical Durability | 8 Mcycles |
| Tightening Torque | 1.2 Nm (Control Circuit), 12 Nm (Power Circuit) |
| Impedance | 0.6 mOhm |
| Rated Insulation Volts | 600/690V, 600/1000V |
| Rated Voltage | 300V DC, 1000V AC |
| Impulse Withstand Voltage | 8 kV |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1660 A @ 440V (Power Circuit) |
| Non-Overlap Time | 1.5 msec |
| Thermal Amperage | 200 A (at 60°C Power Circuit) |
| Switching Current | 5 mA (Signalling Circuit) |
| Net Weight | 2.5 kg |
| Mounts On | Plate, Rail |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open) |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.5 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.15 Uc (at -40-55°C 50/60 Hz), 1 to 1.15 Uc (at 55-70°C 50/60 Hz) |
| Rated Short-Time Withstand Current | 250 A (at 40°C for 10 min Power Circuit), 580 A (at 40°C for 1 min Power Circuit), 1200 A (at 40°C for 10 s Power Circuit), 1400 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Control Circuit Type | AC 50/60 Hz standard |
| Rated Insulation Voltage | Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 1000 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL |
| Control Circuit Voltage | 110 V AC 50/60 Hz |
| Maximum Horse Power Rating | 40 hp at 200/208 V AC 50/60 Hz for 3 phase motors; 50 hp at 230/240 V AC 50/60 Hz for 3 phase motors; 100 hp at 460/480 V AC 50/60 Hz for 3 phase motors; 125 hp at 575/600 V AC 50/60 Hz for 3 phase motors |
| Hold-In Power Consumption in VA | 2 to 18 VA 60 Hz cos phi 0.9 (at 68°F (20°C)); 2 to 18 VA 50 Hz cos phi 0.9 (at 68°F (20°C)) |
| Permissible Ambient Air Temperature Around The Device | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Rated Operational Voltage | Power circuit Less than or Equal to 1000 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Product Or Component Type | Contactor |
| Mounting Support | Rail, Plate |
| Protective Cover | With |
| Maximum Operating Rate | 1200 cyc/h 140°F (60°C) |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 315 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 250 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Climatic Withstand | IACS E10 exposure to damp heat |
| Contact Compatibility | M13 |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Flame Retardance | V1 conforming to UL 94 |
| Rated Impulse Withstand Voltage | 8 kV IEC 60947 |
| Pole Contact Composition | 3 NO |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Heat Dissipation | 3 to 4.5 W at 50/60 Hz |
| Mechanical Robustness | Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 6 Gn for 11 ms) |
| Average Impedance | 0.6 mOhm - Ith 200 A 50 Hz for power circuit |
| Product Certifications | CCC; GOST; DNV; UL; LROS (Lloyds register of shipping); BV; GL; RINA; CSA; UKCA; CE |
| IRMS Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 1660 A at 440 V for power circuit conforming to IEC 60947 |
| Pollution Degree | 3 |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Coil Technology | Built-in bidirectional peak limiting diode suppressor |
| Rated Operational Current | 200 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 150 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 150 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Poles Description | 3P |
| Utilisation Category | AC-4; AC-3; AC-1; AC-3e |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Rated Short Time Withstand Current | 250 A 104°F (40°C) - 10 min for power circuit; 580 A 104°F (40°C) - 1 min for power circuit; 1200 A 104°F (40°C) - 10 s for power circuit; 1400 A 104°F (40°C) - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Motor Power KW | 40 kW at 220 to 230 V AC 50/60 Hz (AC-3); 75 kW at 380 to 400 V AC 50/60 Hz (AC-3); 80 kW at 415 to 440 V AC 50/60 Hz (AC-3); 90 kW at 500 V AC 50/60 Hz (AC-3); 100 kW at 660 to 690 V AC 50/60 Hz (AC-3); 75 kW at 1000 V AC 50/60 Hz (AC-3); 22 kW at 400 V AC 50/60 Hz (AC-4); 40 kW at 220 to 230 V AC 50/60 Hz (AC-3e); 75 kW at 380 to 400 V AC 50/60 Hz (AC-3e); 80 kW at 415 to 440 V AC 50/60 Hz (AC-3e); 90 kW at 500 V AC 50/60 Hz (AC-3e); 100 kW at 660 to 690 V AC 50/60 Hz (AC-3e); 75 kW at 1000 V AC 50/60 Hz (AC-3e) |
| Conventional Free Air Thermal Current | 200 A (at 140°F (60°C)) for power circuit |
| Inrush Power in VA | 280 to 350 VA 60 Hz cos phi 0.9 (at 68°F (20°C)); 280 to 350 VA 50 Hz cos phi 0.9 (at 68°F (20°C)) |
| Contactor Application | Motor control Resistive load |
| Safety Reliability Level | B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1; B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Connections - Terminals | Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: solid without cable end; Power circuit: connector 1 0.02 to 0.19 in² (10 to 120 mm²) - cable stiffness: flexible without cable end; Power circuit: connector 2 0.02 to 0.08 in² (10 to 50 mm²) - cable stiffness: flexible without cable end; Power circuit: connector 1 0.02 to 0.19 in² (10 to 120 mm²) - cable stiffness: flexible with cable end; Power circuit: connector 2 0.02 to 0.08 in² (10 to 50 mm²) - cable stiffness: flexible with cable end; Power circuit: connector 1 0.02 to 0.19 in² (10 to 120 mm²) - cable stiffness: solid without cable end; Power circuit: connector 2 0.02 to 0.08 in² (10 to 50 mm²) - cable stiffness: solid without cable end |
| Protective Treatment | THIEC 60068-2-30 |
| Power Dissipation Per Pole | 24 W AC-1; 13.5 W AC-3; 13.5 W AC-3e |
| Package Quantity | 1 |
