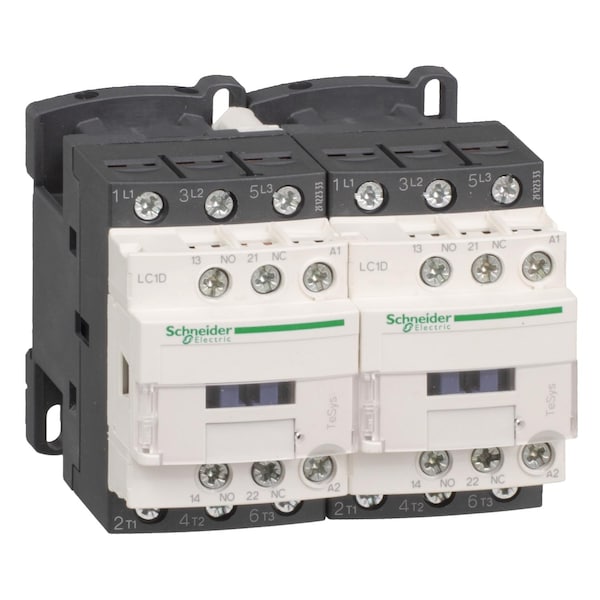

Contacto magnético IEC, 3 polos, 110 V CA, 32 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 32 A |
| Action | Reversing |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 3 |
| Coil Volts | 110 V AC |
| HP @ 1 Phase - 240V | 5 hp |
| Height | 85 mm |
| Width | 90 mm |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| HP @ 3 Phase - 240V | 10 hp |
| Depth | 92 mm |
| HP @ 3 Phase - 575V | 30 hp |
| HP @ 3 Phase - 480V | 20 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Series | LC2D |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, CSA, RINA, GOST, CCC, DNV, LROS, GL, BV, UKCA, TH IEC 60068-2-30 |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Application | Motor Control, Resistive Load |
| Rated Insulation Volts | 600/690V |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Mechanical Durability | 15 Mcycles |
| Operating Speed | 3600 cycles per hr |
| Working Height | Up to 9,842.52 ft |
| Max. Temperature | 850°C |
| Switching Voltage | 17 V (Signalling Circuit) |
| Rated Short-Time Withstand Current | 60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit), 260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit) |
| Includes Protective Cover | Yes |
| Overvoltage Category | CAT III |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Mounts On | Plate, Rail |
| Fire Rating | UL 94 V1 |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Operating Time | 12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Electrical Connection | Screw Clamp Terminals |
| Non-Overlap Time | 1.5 msec |
| Switching Current | 5 mA (Signalling Circuit) |
| Impulse Withstand Voltage | 6 kV |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Rated Breaking Capacity | 550 A @ 440V |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Max. Operating Watts | 7.5 kW (at 220 to 230V AC 50 Hz), 15 kW (at 380 to 400V AC 50 Hz), 15 kW (at 415 to 440V AC 50 Hz), 18.5 kW (at 500V AC 50 Hz), 18.5 kW (at 660 to 690V AC 50 Hz) |
| Net Weight | 0.797 kg |
| Rated Voltage | 690V AC, 300V DC |
| Electrical Durability | 1.65 Mcycles (32 A, AC-3, Less than 440 V); 1.4 Mcycles (50 A, AC-1, Less than 440 V) |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit) |
| Inrush VA | 70 VA |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Watts Loss | 2 to 3W |
| IP Rating | IP20 |
| Impedance | 2 mOhm |
| Package Quantity | 1 |
