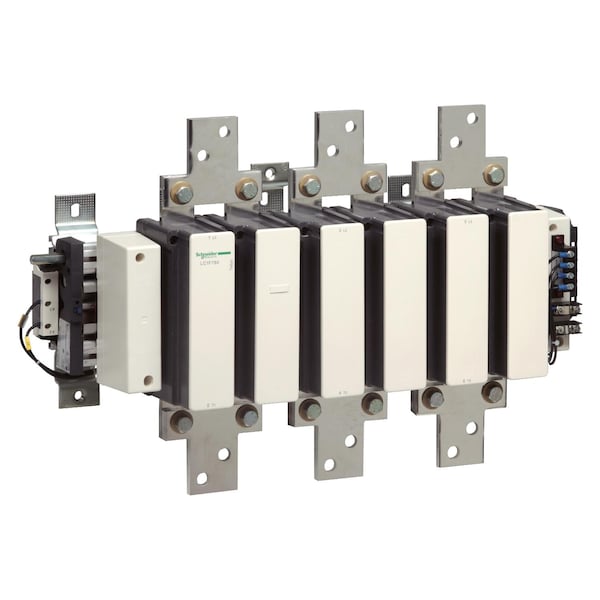

Contacto magnético IEC, 3 polos, 110 V CA, 780 A.
| Full Load Amps-Inductive | 780 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 1600 A |
| Coil Volts | 110 V AC |
| Number of Poles | 3 |
| Height | 17.09 in |
| Width | 27.64 in |
| Depth | 10.04 in |
| Aux. Contact Configuration | 3NO |
| Standards | EN 60947-1; JIS C8201-4-1; IEC 60947-4-1; IEC 60947-1; EN 60947-4-1 |
| Series | LC1F |
| Application | Motor Control, Resistive Load |
| Power dissipation per pole | 250 W AC-1; 60 W AC-3 |
| contactor application | Resistive load; Motor control |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Inrush power in VA | 2100 VA, 40...400 Hz 0.9 68 °F (20 °C)) |
| Motor power kW | 450 kW at 1000 V AC 50/60 Hz (AC-3); 400 kW at 380...400 V AC 50/60 Hz (AC-3); 425 kW at 415 V AC 50/60 Hz (AC-3); 425 kW at 440 V AC 50/60 Hz (AC-3); 450 kW at 500 V AC 50/60 Hz (AC-3); 475 kW at 660...690 V AC 50/60 Hz (AC-3); 220 kW at 220...230 V AC 50/60 Hz (AC-3); 110 kW at 400 V AC 50/60 Hz (AC-4) |
| [Ie] rated operational current | 1600 A (at <104 °F (40 °C)) at <= 440 V AC AC-1; 780 A (at <131 °F (55 °C)) at <= 440 V AC AC-3 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| motor power range | 250 to 500 kW 380 to 440 V 3 phase; 110 to 220 kW 200 to 240 V 3 phase; 250 to 500 kW 480 to 500 V 3 phase |
| power pole contact composition | 3 NO |
| Maximum operating rate | 600 cyc/h 131 °F (55 °C) |
| [Ui] rated insulation voltage | 1000 V IEC 60947-4-1; 1500 V VDE 0110 group C |
| Range | TeSys |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz; <= 460 V DC |
| Motor starter type | Direct on-line contactor |
| Average impedance | 0.1 mOhm - Ith 1600 A 50 Hz |
| protective treatment | TH |
| [Uc] control circuit voltage | 110 V AC 40...400 Hz |
| Mounting Support | Plate |
| Connections - terminals | Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)solid without cable end; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)solid without cable end; Power circuit bar 2 100 x 5 mm; Power circuit bolted connection |
| Mechanical durability | 5 Mcycles |
| Range of Product | TeSys F |
| Product certifications | UL; RINA; ABS; CB; RMRoS; CSA; LROS (Lloyds register of shipping); DNV; BV; UKCA |
| [Icw] rated short-time withstand current | 3000 A 104 °F (40 °C) - 3 min; 6250 A 104 °F (40 °C) - 10 s; 5600 A 104 °F (40 °C) - 30 s; 4600 A 104 °F (40 °C) - 1 min; 2200 A 104 °F (40 °C) - 10 min |
| Heat dissipation | 44 W |
| Contactor coil voltage | 110 V AC standard; 120 V AC standard |
| Control circuit voltage limits | Operational: 0.85 to 1.1 Uc (at 55°C 40 to 400 Hz), Drop-Out: 0.2 to 0.4 Uc (at 55°C 40 to 400 Hz) |
| [Ith] conventional free air thermal current | 1600 A (at 104 °F (40 °C)) |
| Tightening torque | 1.2 Nm (Control Circuit,) 58 Nm (Power Circuit) |
| Associated fuse rating | 1600 A gG at <= 440 V; 800 A aM at <= 440 V |
| IP degree of protection | IP20 front face with shrouds IEC 60529; IP20 front face with shrouds VDE 0106 |
| Product or Component Type | contactor |
| Ambient air temperature for operation | 23 to 131 °F (-5 to 55 °C) |
| Rated breaking capacity | 6240 A |
| Ambient Air Temperature for Storage | -76 to 176 °F (-60 to 80 °C) |
| Operating time | 40 to 80 ms (Closing), 130 to 230 ms (Opening) |
| Permissible ambient air temperature around the device | -40 to 158 °F (-40 to 70 °C) |
| Overvoltage category | CAT III |
| Hold-in power consumption in VA | 50 VA, 40...400 Hz 0.9 68 °F (20 °C)) |
| Utilisation category | AC-4; AC-1; AC-3 |
| Control Circuit Type | AC 40...400 Hz |
| Compatibility code | LC1F |
| poles description | 3P |
| Net Weight | 39.5 kg |
| IP Rating | IP20 |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Bars, Bolted Connection |
| Watts Loss | 44W |
| Rated Voltage | 1000V AC, 460V DC |
| Working Height | 9,842.52 ft |
| Thermal Amperage | 1600 A (at 40°C) |
| Operating Speed | 600 cycles per hr |
| Impedance | 0.1 mOhm |
| Mounts On | Plate |
| Fuse Amps | 800 A (aM Fuse), 1600 A (gG Fuse) |
| Max. Operating Watts | 450 kW (at 1000V AC 50/60 Hz AC-3), 400 kW (at 380 to 400V AC 50/60 Hz AC-3), 425 kW (at 415V AC 50/60 Hz AC-3), 425 kW (at 440V AC 50/60 Hz AC-3), 450 kW (at 500V AC 50/60 Hz AC-3), 475 kW (at 660 to 690V AC 50/60 Hz AC-3), 220 kW (at 220 to 230V AC 50/60 Hz AC-3), 110 kW (at 400V AC 50/60 Hz AC-4) |
| Inrush VA | 2100 VA |
| Environmental Attributes | Mercury Free |
| Rated Short-Time Withstand Current | 3000 A (40°C for 3 min), 6250 A (at 40°C for 10 s), 5600 A (at 40°C for 30 s), 4600 A (at 40°C for 1 min), 2200 A (at 40°C for 10 min) |
| Hold VA | 50 VA |
| Rated Insulation Volts | 1000/1500V |
| Impulse Withstand Voltage | 8 kV |
| Package Quantity | 1 |
