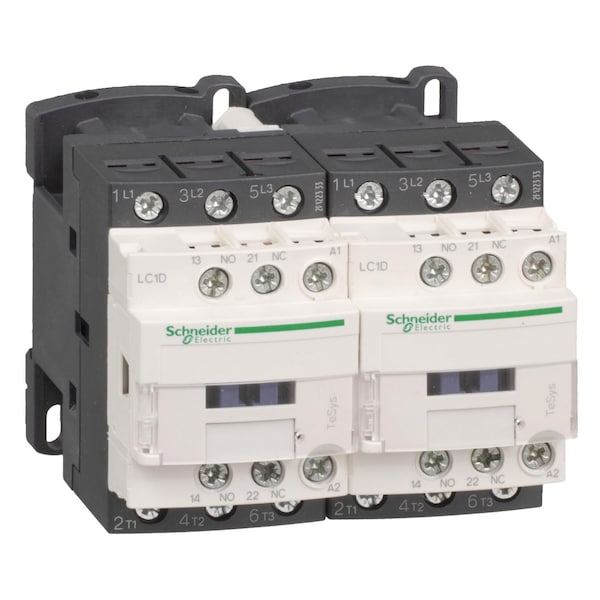

Contacto magnético IEC, 3 polos, 110 V CC, 12 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 12 A |
| Action | Reversing |
| Full Load Amps-Resistive | 25 A |
| Number of Poles | 3 |
| Coil Volts | 110 V DC |
| Height | 77 mm |
| HP @ 1 Phase - 240V | 2 hp |
| Width | 90 mm |
| HP @ 3 Phase - 208V | 3 hp |
| HP @ 3 Phase - 240V | 3 hp |
| Depth | 95 mm |
| HP @ 3 Phase - 575V | 10 hp |
| HP @ 3 Phase - 480V | 7 1/2 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Series | LC2D |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30 |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar |
| Application | Motor Control, Resistive Load |
| IP Rating | IP20 |
| Rated Breaking Capacity | 250 A @ 440V |
| Fire Rating | UL 94 V1 |
| Mechanical Durability | 30 Mcycles |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Max. Operating Watts | 3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz) |
| Switching Current | 5 mA (Signalling Circuit) |
| Working Height | Up to 9,842.52 ft |
| Control Circuit Voltage Limits | Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C) |
| Environmental Attributes | Mercury Free, PVC Free, Pollution Degree 3 |
| Rated Voltage | 690V AC, 300V DC |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Electrical Connection | Screw Clamp Terminals |
| Operating Time | 53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening) |
| Overvoltage Category | CAT III |
| Rated Short-Time Withstand Current | 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Electrical Durability | 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V) |
| Impulse Withstand Voltage | 6 kV |
| Operating Speed | 3600 cycles per hr |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit) |
| Net Weight | 1.027 kg |
| Impedance | 2.5 mOhm |
| Fuse Amps | 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit) |
| Includes Protective Cover | Yes |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Mounts On | Plate, Rail |
| Max. Temperature | 850°C |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Non-Overlap Time | 1.5 msec |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit) |
| Rated Making Capacity | 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Rated Insulation Volts | 600/690V |
| Product Name | TeSys Deca |
| Range | TeSys, Deca |
| Product or Component Type | reversing contactor |
| Motor Power Kw | 3 kW at 220...230 V AC 50 Hz, 5.5 kW at 380...400 V AC 50 Hz, 5.5 kW at 415...440 V AC 50 Hz, 7.5 kW at 500 V AC 50 Hz, 7.5 kW at 660...690 V AC 50 Hz |
| Inrush Power In W | 5.4-5.4 W 20°C |
| Maximum Operating Rate | 3600 cyc/h 60°C |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1, 40 A gG at <= 690 V coordination type 1 for power circuit, 25 A gG at <= 690 V coordination type 2 for power circuit |
| [Ie] Rated Operational Current | 25 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 12 A (at <60°C) at <= 440 V AC AC-3 for power circuit |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Ambient Air Temperature For Operation | -40-60°C, 60-70°C with derating |
| Ambient Air Temperature For Storage | -60-80°C |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60°C) for signalling circuit, 25 A (at 60°C) for power circuit |
| Device Presentation | Preassembled with reversing power busbar |
| Insulation Resistance | > 10 MOhm for signalling circuit |
| Poles Description | 3P |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Climatic Withstand | IACS E10, IEC 60947-1 Annex Q category D |
| Pole Contact Composition | 3 NO |
| Protective Treatment | THIEC 60068-2-30 |
| Coil Technology | Built-in bidirectional peak limiting diode suppressor |
| Irms Rated Making Capacity | 250 A at 440 V for power circuit conforming to IEC 60947, 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| [Icw] Rated Short-Time Withstand Current | 30 A 40°C - 10 min for power circuit, 61 A 40°C - 1 min for power circuit, 105 A 40°C - 10 s for power circuit, 210 A 40°C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Time Constant | 28 msec |
| Fire Resistance | 850°C IEC 60695-2-1 |
| Hold-In Power Consumption In W | 5.4-5.4 W 20°C |
| Interlocking Type | Mechanical |
| Flame Retardance | V1 conforming to UL 94 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Protective Cover | With |
| Maximum Horse Power Rating | 1 hp at 115 V AC 60 Hz for 1 phase motors, 2 hp at 230/240 V AC 60 Hz for 1 phase motors, 3 hp at 200/208 V AC 60 Hz for 3 phase motors, 3 hp at 230/240 V AC 60 Hz for 3 phase motors, 7.5 hp at 460/480 V AC 60 Hz for 3 phase motors, 10 hp at 575/600 V AC 60 Hz for 3 phase motors |
| Mounting Support | Rail, Plate |
| Contactor Application | Motor control Resistive load |
| Power Dissipation Per Pole | 1.56 W AC-1, 0.36 W AC-3 |
| Connections - Terminals | power circuit screw clamp terminals 1 1-4 mm²flexible without cable end, power circuit screw clamp terminals 2 1-4 mm²flexible without cable end, power circuit screw clamp terminals 1 1-4 mm²flexible with cable end, power circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, power circuit screw clamp terminals 1 1-4 mm²solid, power circuit screw clamp terminals 2 1-4 mm²solid, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid, control circuit screw clamp terminals 2 1-4 mm²solid |
| [Ui] Rated Insulation Voltage | power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL |
| Control Circuit Type | DC standard |
| Ip Degree of Protection | IP20 front face IEC 60529 |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC |
| Auxiliary Contacts Type | mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1 |
| Utilisation Category | AC-3, AC-1 |
| Mechanical Robustness | vibrations contactor open2 Gn, 5...300 Hz, vibrations contactor closed4 Gn, 5...300 Hz, shocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms |
| Package Quantity | 1 |
