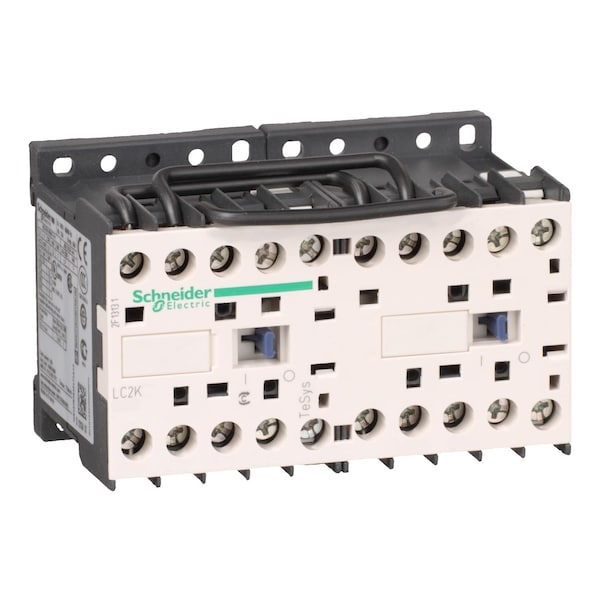

Contactores magnéticos IEC, 3 polos, 120 V CA, 12 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 12 A |
| Action | Reversing |
| Full Load Amps-Resistive | 20 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Height | 58 mm |
| Width | 90 mm |
| Depth | 57 mm |
| Aux. Contact Configuration | 1NO |
| Series | LC2K |
| Standards | EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016 |
| Features | Preassembled with Reversing Power Busbar |
| Application | Motor Control, Resistive Load |
| Watts Loss | 1.3W |
| Impulse Withstand Voltage | 8 kV |
| Overvoltage Category | CAT III |
| Switching Current | 5 mA (Signalling Circuit) |
| Rated Breaking Capacity | 110 A @ 440V, 80 A @ 500V, 70 A @ 660 to 690V |
| Switching Voltage | 17 V (Signalling Circuit) |
| Shock Resistance | 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open) |
| Mounts On | Plate, Rail |
| Electrical Connection | Screw Clamp Terminals |
| Inrush VA | 30 VA |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Control Circuit Voltage Limits | Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.2 to 0.75 Uc (at 50°C) |
| Impedance | 3 mOhm |
| IP Rating | IP20 |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Tightening Torque | 0.8 to 1.3 Nm |
| Thermal Amperage | 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit) |
| Rated Insulation Volts | 600/690V |
| Operating Speed | 3600 cycles per hr |
| Net Weight | 0.39 kg |
| Operating Time | 10 to 20 ms (Coil Energisation and NO Closing), 10 to 20 ms (Coil De-Energisation and NO Opening) |
| Fire Rating | UL 94 V1, NF F 16-101, NF F 16-102 |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Rated Voltage | 690V AC |
| Hold VA | 4.5 VA |
| Mechanical Durability | 5 Mcycles |
| Working Height | 6,561.68 ft |
| Electrical Durability | 0.3 Mcycles (20 A, AC-1, Less than 440 V); 1.3 Mcycles (12 A, AC-3, Less than 440 V); 1.3 Mcycles (12 A, AC-3e, Less than 440 V) |
| Rated Short-Time Withstand Current | 115 A (at 50°C for 1 s Power Circuit), 105 A (at 50°C for 5 s Power Circuit), 100 A (at 50°C for 10 s Power Circuit), 75 A (at 50°C for 30 s Power Circuit), 55 A (at 50°C for 1 min Power Circuit), 50 A (at 50°C for 3 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit), 25 A (at 50°C for 15 min Power Circuit) |
| Signalling Circuit Frequency | Less Than 400 Hz |
| Rated Making Capacity | 144 A @ 690V (AC Power Circuit), 110 A (AC Signalling Circuit) |
| Fuse Amps | 25 A (Power Circuit), 10 A (Signalling Circuit) |
| Max. Operating Watts | 4 kW (at 480V AC 50/60 Hz), 4 kW (at 500 to 600V AC 50/60 Hz), 4 kW (at 660 to 690V AC 50/60 Hz), 3 kW (at 220 to 230V AC 50/60 Hz), 5.5 kW (at 380 to 415VAC 50/60 Hz), 5.5 kW (at 440V AC 50/60 Hz) |
| Package Quantity | 1 |
