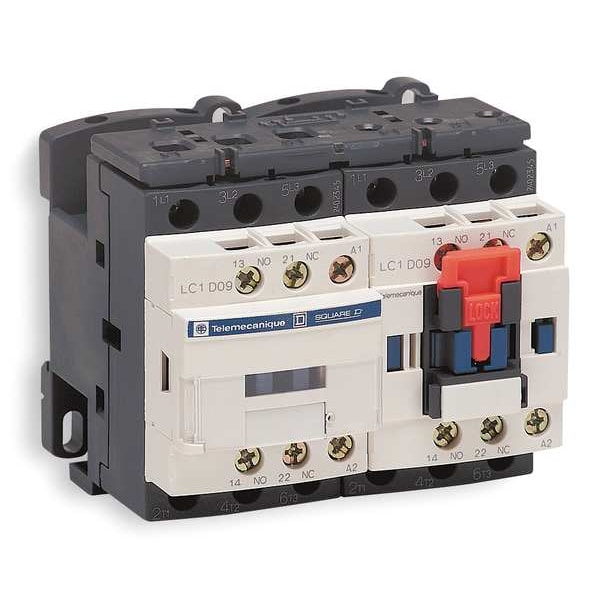

Contacto magnético IEC, 3 polos, 120 V CA, 12 A, Reversión: Sí
| Full Load Amps-Inductive | 12 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 25 A |
| Action | Reversing |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 230V | 2 |
| HP @ 1 Phase - 120V | 1 hp |
| Height | 3.54 in |
| HP @ 1 Phase - 240V | 2 hp |
| Width | 3.54 in |
| HP @ 3 Phase - 208V | 3 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Depth | 3.54 in |
| HP @ 3 Phase - 240V | 3 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 7 1/2 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Includes | Electrical Interlock, Mechanical Interlock |
| Auxiliary Contact Form | 1NO/1NC |
| Frame / Series / Class / Code | TeSys |
| Standards | BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| Rated Insulation Volts | 600/690V |
| Rated Short-Time Withstand Current | 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Fuse Amps | 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit) |
| Fire Rating | UL 94 V1 |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Mechanical Durability | 15 Mcycles |
| IP Rating | IP20 |
| Non-Overlap Time | 1.5 msec |
| Rated Making Capacity | 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Application | Motor Control, Resistive Load |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Rated Breaking Capacity | 250 A @ 440V |
| Overvoltage Category | CAT III |
| Working Height | Up to 9,842.52 ft |
| Operating Time | 12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Operating Speed | 3600 cycles per hr |
| Max. Temperature | 850°C |
| Rated Voltage | 690V AC, 300V DC |
| Impulse Withstand Voltage | 6 kV |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit) |
| Max. Operating Watts | 3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz) |
| Switching Current | 5 mA (Signalling Circuit) |
| Impedance | 2.5 mOhm |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Includes Protective Cover | Yes |
| Inrush VA | 70 VA |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit) |
| Net Weight | 0.697 kg |
| Electrical Durability | 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Watts Loss | 2 to 3W |
| Mounts On | Plate, Rail |
| Electrical Connection | Screw Clamp Terminals |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Number of Auxillary Contacts | 2 |
| Contactor Style | IEC |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Terminal Connection Type | Screw Clamp Terminals |
| Maximum Voltage Rating | 690 V AC |
| Overall Depth | 3.39 in |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Maximum Operating Temperature | 140 deg F |
| Electrical Operating Durability | 2,000,000, 800,000 |
| Coil Voltage | 120V AC |
| NEMA Enclosure Rating | No Enclosure |
| Overall Height | 3.03 in |
| Embedded Surge Suppressor | No |
| Reversing Capability | Reversing |
| Phase | Three |
| Full Load Current - Resistive | 25 A |
| Number of Normally Open Main Contacts | 3 |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Mounting Style | DIN Rail, Plate |
| Horsepower @ Three Phase - 480V AC | 7.5 HP |
| Minimum Operating Temperature | -40 deg F |
| Full Load Current - Inductive | 12 A |
| Mechanical Operating Durability | 15,000,000 |
| Overall Width | 3.54 in |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Includes Auxiliary Contacts | Yes |
| Climatic Withstand | IACS E10; IEC 60947-1 Annex Q category D |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Motor Power HP | 1 hp at 115 V AC 60 Hz for 1 phase motors; 2 hp at 230/240 V AC 60 Hz for 1 phase motors; 3 hp at 200/208 V AC 60 Hz for 3 phase motors; 3 hp at 230/240 V AC 60 Hz for 3 phase motors; 7.5 hp at 460/480 V AC 60 Hz for 3 phase motors; 10 hp at 575/600 V AC 60 Hz for 3 phase motors |
| Pollution Degree | 3 |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Power Dissipation Per Pole | 1.56 W AC-1; 0.36 W AC-3 |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 40 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 25 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Ambient Air Temperature For Operation | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Rated Short Time Withstand Current | 30 A 104°F (40°C) - 10 min for power circuit; 61 A 104°F (40°C) - 1 min for power circuit; 105 A 104°F (40°C) - 10 s for power circuit; 210 A 104°F (40°C) - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 25 A (at 140°F (60°C)) for power circuit |
| Flame Retardance | V1 conforming to UL 94 |
| Motor Power KW | 3 kW at 220 to 230 V AC 50 Hz; 5.5 kW at 380 to 400 V AC 50 Hz; 5.5 kW at 415 to 440 V AC 50 Hz; 7.5 kW at 500 V AC 50 Hz; 7.5 kW at 660 to 690 V AC 50 Hz |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Device Presentation | Preassembled with reversing power busbar |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Product Name | TeSys, TeSys D Deca |
| Contactor Application | Resistive load |
| Control Circuit Type | AC 50/60 Hz |
| Poles Description | 3P |
| Rated Operational Current | 25 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit |
| Mounting Support | Rail, Plate |
| Protective Treatment | THIEC 60068-2-30 |
| Control Circuit Voltage | 120 V AC 50/60 Hz |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Utilisation Category | AC-3; AC-1 |
| Connections - Terminals | Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Power circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)solid; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)solid; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)solid; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)solid |
| Product Or Component Type | Reversing contactor |
| Heat Dissipation | 2 to 3 W 50/60 Hz |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Interlocking Type | Mechanical, Electrical |
| Front Cover | With |
| Rated Insulation Voltage | Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL |
| Power Pole Contact Composition | 3 NO |
| IRMS Rated Making Capacity | 250 A at 440 V for power circuit conforming to IEC 60947; 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Ambient Air Temperature For Storage | -76 to 176°F |
| Product Certifications | DNV; CSA; CCC; UL; GL; LROS (Lloyds register of shipping); BV; RINA; GOST; UKCA |
| Inrush Power in VA | 70 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 70 VA 50 Hz cos phi 0.75 (at 68°F (20°C)) |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Mechanical Robustness | Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Hold-In Power Consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 7 VA 50 Hz cos phi 0.3 (at 68°F (20°C)) |
| Coil Technology | Without built-in suppressor module |
| Package Quantity | 1 |
