| Full Load Amps-Inductive | 15 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Action | Reversing |
| Full Load Amps-Resistive | 200 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Height | 158 mm |
| Width | 266 mm |
| HP @ 3 Phase - 208V | 40 hp |
| HP @ 3 Phase - 575V | 125 hp |
| HP @ 3 Phase - 240V | 50 hp |
| Depth | 148 mm |
| HP @ 3 Phase - 480V | 100 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, BV, CCC, CSA, DNV, GL, RINA, UL, EAC, UKCA, TH IEC 60068-2-30 |
| Series | LC2D |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar |
| Application | Motor Control, Resistive Load |
| Fire Rating | UL 94 V1 |
| Overvoltage Category | CAT III |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1660 A @ 440V (Power Circuit) |
| Electrical Durability | 0.85 Mcycles (150 A, AC-3, Less than 440 V); 1 Mcycles (200 A, AC-1, Less than 440 V) |
| Environmental Attributes | Mercury Free, PVC Free, Pollution Degree 3 |
| Rated Voltage | 300V DC, 1000V AC |
| Mounts On | Plate, Rail |
| Mechanical Durability | 8 Mcycles |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.5 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.15 Uc (at -40-55°C 50/60 Hz), 1 to 1.15 Uc (at 55-70°C 50/60 Hz) |
| Max. Operating Watts | 40 kW (at 220 to 230V AC 50 Hz), 75 kW (at 380 to 400V AC 50 Hz), 80 kW (at 415 to 440V AC 50 Hz), 90 kW (at 500V AC 50 Hz), 100 kW (at 660 to 690V AC 50 Hz), 75 kW (at 1000V AC 50 Hz) |
| Hold VA | 2 to 18 VA |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Non-Overlap Time | 1.5 msec |
| Net Weight | 6.4 kg |
| Electrical Connection | Screw Clamp Terminals |
| Switching Voltage | 17 V (Signalling Circuit) |
| Rated Breaking Capacity | 1400 A @ 440V |
| IP Rating | IP20 |
| Impedance | 0.6 mOhm |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open) |
| Rated Insulation Volts | 600/690V, 600/1000V |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Rated Short-Time Withstand Current | 250 A (at 40°C for 10 min Power Circuit), 580 A (at 40°C for 1 min Power Circuit), 1200 A (at 40°C for 10 s Power Circuit), 1400 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Operating Time | 20 to 35 ms (Closing), 40 to 75 ms (Opening) |
| Impulse Withstand Voltage | 8 kV |
| Watts Loss | 3 to 4.5W |
| Max. Temperature | 850°C |
| Inrush VA | 280 to 350 VA |
| Switching Current | 5 mA (Signalling Circuit) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Includes Protective Cover | Yes |
| Fuse Amps | 10 A (Signalling Circuit), 315 A (Type 1 Power Circuit), 250 A (Type 2 Power Circuit) |
| Operating Speed | 1200 cycles per hr |
| Tightening Torque | 1.2 Nm (Control Circuit), 12 Nm (Power Circuit) |
| Thermal Amperage | 200 A (at 60°C Power Circuit) |
| Working Height | Up to 9,842.52 ft |
| Mechanical Robustness | Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor closed15 Gn for 11 ms; Shocks contactor open6 Gn for 11 ms |
| Motor Power KW | 40 kW at 220 to 230 V AC 50 Hz; 75 kW at 380 to 400 V AC 50 Hz; 80 kW at 415 to 440 V AC 50 Hz; 90 kW at 500 V AC 50 Hz; 100 kW at 660 to 690 V AC 50 Hz; 75 kW at 1000 V AC 50 Hz |
| Rated Short Time Withstand Current | 250 A 104°F (40°C) - 10 min for power circuit; 580 A 104°F (40°C) - 1 min for power circuit; 1200 A 104°F (40°C) - 10 s for power circuit; 1400 A 104°F (40°C) - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Heat Dissipation | 3 to 4.5 W 50/60 Hz |
| Average Impedance | 0.6 mOhm - Ith 200 A 50 Hz for power circuit |
| Pollution Degree | 3 |
| Utilisation Category | AC-3; AC-1; AC-3e |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Connections - Terminals | Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.00 in² (1 to 2.5 mm²)flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.00 in² (1 to 2.5 mm²)solid without cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)solid without cable end; Power circuit connector 1 0.02 to 0.19 in² (10 to 120 mm²)flexible without cable end; Power circuit connector 2 0.02 to 0.08 in² (10 to 50 mm²)flexible without cable end; Power circuit connector 1 0.02 to 0.19 in² (10 to 120 mm²)flexible with cable end; Power circuit connector 2 0.02 to 0.08 in² (10 to 50 mm²)flexible with cable end; Power circuit connector 1 0.02 to 0.19 in² (10 to 120 mm²)solid without cable end; Power circuit connector 2 0.02 to 0.08 in² (10 to 50 mm²)solid without cable end |
| Control Circuit Voltage | 120 V AC 50/60 Hz |
| Coil Technology | Built-in bidirectional peak limiting diode suppressor |
| Inrush Power in VA | 280 to 350 VA 60 Hz 0.9 68°F (20°C)); 280 to 350 VA 50 Hz 0.9 68°F (20°C)) |
| Product Name | TeSys Deca |
| Motor Power HP | 40 hp at 200/208 V AC 60 Hz for 3 phase motors; 50 hp at 230/240 V AC 60 Hz for 3 phase motors; 100 hp at 460/480 V AC 60 Hz for 3 phase motors; 125 hp at 575/600 V AC 60 Hz for 3 phase motors |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Power Pole Contact Composition | 3 NO |
| Ambient Air Temperature For Operation | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Protective Treatment | THIEC 60068-2-30 |
| Rated Operational Voltage | Power circuit Less than or Equal to 1000 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Maximum Operating Rate | 1200 cyc/h 140°F (60°C) |
| Rated Operational Current | 200 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 150 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 150 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Power Dissipation Per Pole | 24 W AC-1; 13.5 W AC-3; 13.5 W AC-3e |
| Rated Impulse Withstand Voltage | 8 kV IEC 60947 |
| Control Circuit Type | AC 50/60 Hz |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Front Cover | With |
| Hold-In Power Consumption in VA | 2 to 18 VA 68°F (20°C)) 0.9 60 Hz; 2 to 18 VA 68°F (20°C)) 0.9 50 Hz |
| Ambient Air Temperature For Storage | -76 to 176°F |
| Interlocking Type | Mechanical, Electrical |
| Climatic Withstand | IACS E10 |
| Rated Insulation Voltage | Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL; Power circuit 1000 V IEC 60947-4-1 |
| Product Certifications | BV; CCC; CSA; DNV; GL; RINA; UL; EAC; UKCA |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Mounting Support | Rail |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| IRMS Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 1660 A at 440 V for power circuit conforming to IEC 60947 |
| Conventional Free Air Thermal Current | 200 A (at 140°F (60°C)) for power circuit |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |

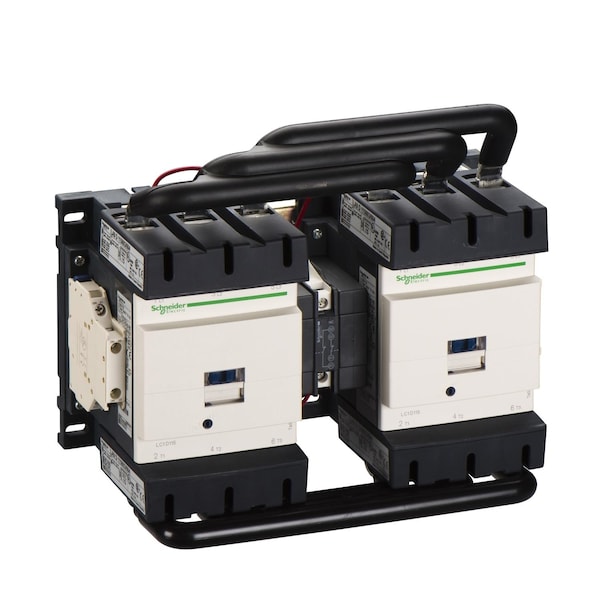

| Product Or Component Type | Reversing contactor |
| Flame Retardance | V1 conforming to UL 94 |
| Device Presentation | Preassembled with reversing power busbar |
| Contactor Application | Motor control Resistive load |
| Poles Description | 3P |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 315 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 250 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Package Quantity | 1 |
