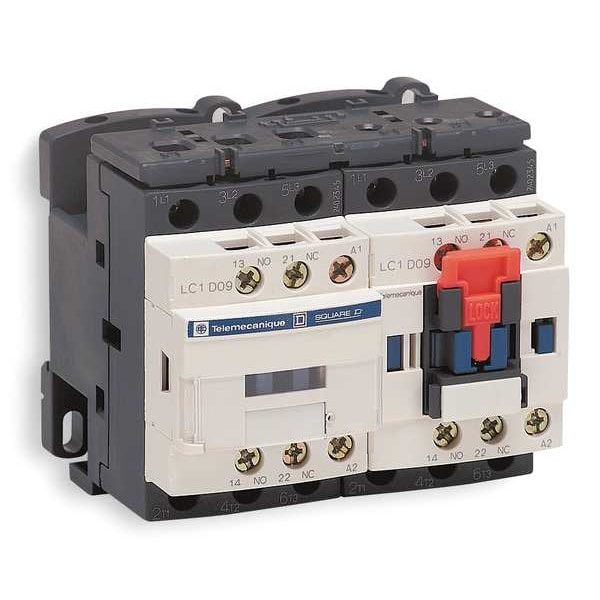

Contacto magnético IEC, 3 polos, 120 V CA, 25 A, Inversión: Sí.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 25 A |
| Action | Reversing |
| Full Load Amps-Resistive | 40 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 230V | 3 |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 3 hp |
| Height | 3.54 in |
| Width | 3.54 in |
| HP @ 3 Phase - 208V | 5 hp |
| HP @ 3 Phase - 575V | 20 hp |
| Depth | 3.54 in |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 15 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Includes | Electrical Interlock, Mechanical Interlock |
| Standards | BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed |
| Frame / Series / Class / Code | TeSys |
| Auxiliary Contact Form | 1NO/1NC |
| NEMA Size | Not Applicable |
| Series | TeSys Deca |
| Operating Time | 12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Max. Operating Watts | 5.5 kW (at 220 to 230V AC 50 Hz), 11 kW (at 380 to 400V AC 50 Hz), 11 kW (at 415 to 440V AC 50 Hz), 15 kW (at 500V AC 50 Hz), 15 kW (at 660 to 690V AC 50 Hz) |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Impulse Withstand Voltage | 6 kV |
| Rated Insulation Volts | 600/690V |
| IP Rating | IP20 |
| Application | Motor Control, Resistive Load |
| Operating Speed | 3600 cycles per hr |
| Non-Overlap Time | 1.5 msec |
| Inrush VA | 70 VA |
| Max. Temperature | 850°C |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Rated Voltage | 690V AC, 300V DC |
| Impedance | 2 mOhm |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Fire Rating | UL 94 V1 |
| Rated Breaking Capacity | 450 A @ 440V |
| Rated Short-Time Withstand Current | 50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Overvoltage Category | CAT III |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Includes Protective Cover | Yes |
| Mounts On | Plate, Rail |
| Switching Voltage | 17 V (Signalling Circuit) |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit) |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Mechanical Durability | 15 Mcycles |
| Electrical Durability | 1.65 Mcycles (25 A, AC-3, Less than 440 V); 1.4 Mcycles (40 A, AC-1, Less than 440 V) |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Watts Loss | 2 to 3W |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit) |
| Net Weight | 0.787 kg |
| Working Height | Up to 9,842.52 ft |
| Switching Current | 5 mA (Signalling Circuit) |
| Electrical Connection | Screw Clamp Terminals |
| Maximum Voltage Rating | 690 V AC |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Overall Width | 3.54 in |
| Reversing Capability | Reversing |
| Mechanical Operating Durability | 15,000,000 |
| Terminal Connection Type | Screw Clamp Terminals |
| Maximum Operating Temperature | 140 deg F |
| Includes Auxiliary Contacts | Yes |
| Full Load Current - Resistive | 40 A |
| Overall Depth | 3.62 in |
| Horsepower @ Three Phase - 600V AC | 20 HP |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Embedded Surge Suppressor | No |
| Full Load Current - Inductive | 25 A |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Horsepower @ Three Phase - 208V AC | 5 HP |
| Minimum Operating Temperature | -40 deg F |
| Overall Height | 3.35 in |
| Mounting Style | DIN Rail, Plate |
| Contactor Style | IEC |
| Phase | Three |
| Electrical Operating Durability | 1,400,000, 1,650,000 |
| Number of Auxillary Contacts | 2 |
| Number of Normally Open Main Contacts | 3 |
| NEMA Enclosure Material | Not Applicable |
| Coil Voltage | 120V AC |
| Package Quantity | 1 |
