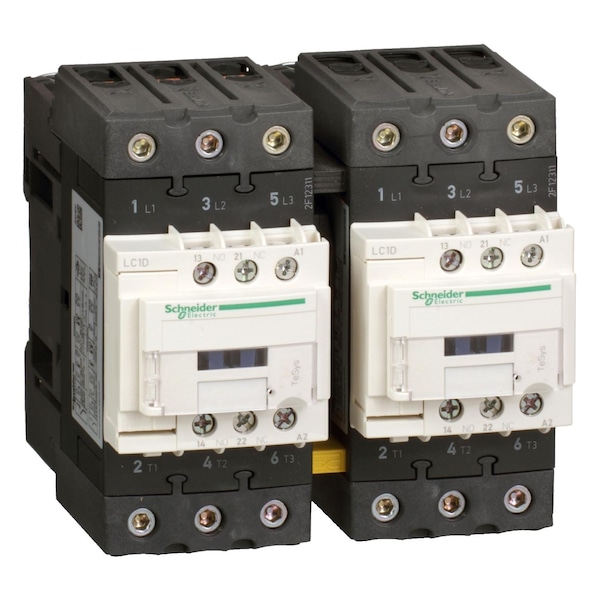

Contactador magnético IEC, 3 polos, 120 V CA, 50 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 50 A |
| Action | Reversing |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Height | 122 mm |
| HP @ 3 Phase - 208V | 15 hp |
| Width | 119 mm |
| Depth | 120 mm |
| HP @ 3 Phase - 575V | 40 hp |
| HP @ 3 Phase - 240V | 15 hp |
| HP @ 3 Phase - 480V | 40 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, CSA, RINA, GOST, CCC, DNV, LROS, GL, BV, UKCA, TH IEC 60068-2-30 |
| Series | LC2D |
| Application | Motor Control, Resistive Load |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Impedance | 1.5 mOhm |
| Switching Voltage | 17 V (Signalling Circuit) |
| Working Height | Up to 9,842.52 ft |
| Non-Overlap Time | 1.5 msec |
| Mechanical Durability | 6 Mcycles |
| Hold VA | 13 VA |
| Electrical Durability | 1.45 Mcycles (50 A, AC-3, Less than 440 V); 1.1 Mcycles (80 A, AC-1, Less than 440 V) |
| Includes Protective Cover | Yes |
| Max. Operating Watts | 15 kW (at 220 to 230V AC 50 Hz), 22 kW (at 380 to 400V AC 50 Hz), 30 kW (at 500V AC 50 Hz), 33 kW (at 660 to 690V AC 50 Hz), 25 kW (at 415V AC 50 Hz), 30 kW (at 440V AC 50 Hz) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 900 A @ 440V (Power Circuit) |
| Operating Time | 4 to 19 ms (Opening), 12 to 26 ms (Closing) |
| Rated Short-Time Withstand Current | 400 A (at 40°C for 10 s Power Circuit), 810 A (at 40°C for 1 s Power Circuit), 84 A (at 40°C for 10 min Power Circuit), 208 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Watts Loss | 4 to 5W |
| Impulse Withstand Voltage | 6 kV |
| Rated Insulation Volts | 600/690V |
| Rated Breaking Capacity | 900 A @ 440V |
| Net Weight | 1.88 kg |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Rated Voltage | 690V AC, 300V DC |
| Overvoltage Category | CAT III |
| Switching Current | 5 mA (Signalling Circuit) |
| Fuse Amps | 10 A (Signalling Circuit), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Fire Rating | UL 94 V1 |
| IP Rating | IP20 |
| Max. Temperature | 850°C |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 60 Hz) , Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 60 Hz) |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit) |
| Operating Speed | 3600 cycles per hr |
| Inrush VA | 140 VA |
| Mounts On | Plate, Rail |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Front Cover | With |
| Motor Power HP | 3 hp at 115 V AC 60 Hz for 1 phase motors; 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors; 15 hp at 200/208 V AC 60 Hz for 3 phase motors; 15 hp at 230/240 V AC 60 Hz for 3 phase motors; 40 hp at 460/480 V AC 60 Hz for 3 phase motors; 40 hp at 575/600 V AC 60 Hz for 3 phase motors |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Rated Insulation Voltage | Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL |
| IRMS Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 900 A at 440 V for power circuit conforming to IEC 60947 |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Rated Operational Current | 50 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 80 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 50 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Product Certifications | UL; CSA; RINA; GOST; CCC; DNV; LROS (Lloyds register of shipping); GL; BV; UKCA |
| Hold-In Power Consumption in VA | 13 VA 60 Hz cos phi 0.3 (at 68°F (20°C)) |
| Interlocking Type | Mechanical |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Average Impedance | 1.5 mOhm - Ith 80 A 50 Hz for power circuit |
| Power Dissipation Per Pole | 3.7 W AC-3; 9.6 W AC-1; 3.7 W AC-3e |
| Coil Technology | Without built-in suppressor module |
| Connections - Terminals | Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)solid; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)solid; Power circuit EverLink BTR screw connectors 1 0.00 to 0.05 in² (1 to 35 mm²)flexible without cable end; Power circuit EverLink BTR screw connectors 2 0.00 to 0.04 in² (1 to 25 mm²)flexible without cable end; Power circuit EverLink BTR screw connectors 1 0.00 to 0.05 in² (1 to 35 mm²)flexible with cable end; Power circuit EverLink BTR screw connectors 2 0.00 to 0.04 in² (1 to 25 mm²)flexible with cable end; Power circuit EverLink BTR screw connectors 1 0.00 to 0.05 in² (1 to 35 mm²)solid; Power circuit EverLink BTR screw connectors 2 0.00 to 0.04 in² (1 to 25 mm²)solid |
| Motor Power KW | 15 kW at 220 to 230 V AC 50-60 Hz; 22 kW at 380 to 400 V AC 50-60 Hz; 30 kW at 500 V AC 50-60 Hz; 33 kW at 660 to 690 V AC 50-60 Hz; 25 kW at 415 V AC 50-60 Hz; 30 kW at 440 V AC 50-60 Hz |
| Rated Short Time Withstand Current | 400 A 104°F (40°C) - 10 s for power circuit; 810 A 104°F (40°C) - 1 s for power circuit; 84 A 104°F (40°C) - 10 min for power circuit; 208 A 104°F (40°C) - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Flame Retardance | V1 conforming to UL 94 |
| Inrush Power in VA | 140 VA 60 Hz cos phi 0.75 (at 68°F (20°C)) |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Mounting Support | Rail |
| Control Circuit Type | AC 60 Hz |
| Ambient Air Temperature For Storage | -76 to 176°F |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 100 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 100 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Mechanical Robustness | Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Contactor Application | Resistive load |
| Control Circuit Voltage | 120 V AC 60 Hz |
| Poles Description | 3P |
| Product Or Component Type | Reversing contactor |
| Climatic Withstand | IACS E10; IEC 60947-1 Annex Q category D |
| Pollution Degree | 3 |
| Power Pole Contact Composition | 3 NO |
| Protective Treatment | THIEC 60068-2-30 |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Heat Dissipation | 4 to 5 W 60 Hz |
| Device Presentation | Preassembled with reversing power busbar |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 80 A (at 140°F (60°C)) for power circuit |
| Product Name | TeSys, TeSys D Deca |
| Ambient Air Temperature For Operation | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Utilisation Category | AC-1; AC-3; AC-3e |
| Package Quantity | 1 |
