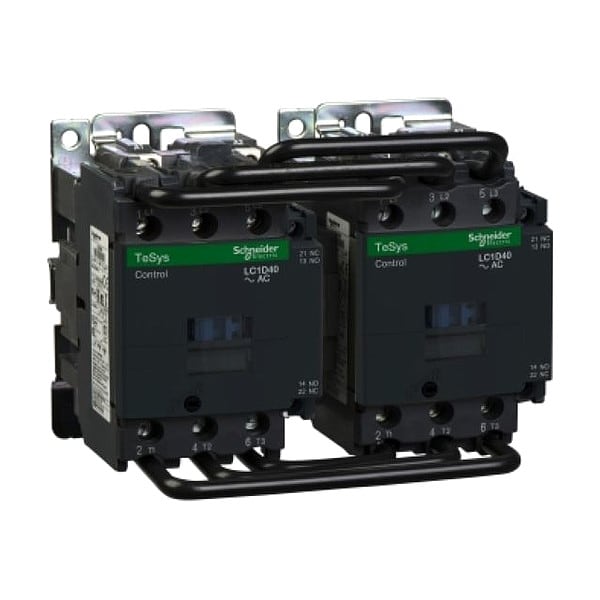

Contacto magnético IEC, 3 polos, 120 V AC, 50 A.
| Full Load Amps-Inductive | 50 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Action | Reversing |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Height | 132 mm |
| Width | 165 mm |
| Depth | 142 mm |
| Aux. Contact Configuration | 1NO, 1NC |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | 1NO/1NC |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508 |
| Series | TeSys Deca |
| IP Rating | IP20 |
| Includes Auxiliary Contacts | Yes |
| Overall Depth | 5.59 in |
| Maximum Operating Temperature | 140 deg F |
| NEMA Enclosure Rating | No Enclosure |
| Embedded Surge Suppressor | No |
| Number of Normally Open Main Contacts | 1 |
| Overall Height | 5.2 in |
| Mechanical Operating Durability | 6,000,000 |
| Number of Normally Closed Main Contacts | 0 |
| Terminal Connection Type | Screw Clamp Terminals |
| Frequency | 60 Hz |
| Contactor Style | IEC |
| Coil Voltage | 120V AC |
| Full Load Current - Resistive | 80 A |
| Reversing Capability | Reversing |
| Minimum Operating Temperature | 23 deg F |
| Maximum Voltage Rating | 120 V AC |
| Full Load Current - Inductive | 50 A |
| Overall Width | 6-1/2 in |
| Number of Auxillary Contacts | 3 |
| Motor Power KW | 15 kW 220 to 240 V AC 50/60 Hz; 22 kW 380 to 400 V AC 50/60 Hz; 25 kW 415 V AC 50/60 Hz; 30 kW 440 V AC 50/60 Hz; 30 kW 500 V AC 50/60 Hz; 33 kW 660 to 690 V AC 50/60 Hz |
| IP Degree Of Protection | IP2X IEC 60529; IP2X VDE 0106 |
| Rated Voltage | 1000V AC |
| Rated Insulation Voltage | Control circuit 600 V CSA; Control circuit 600 V UL; Power circuit 600 V CSA; Power circuit 600 V UL; Control circuit 690 V IEC 60947-1; Power circuit 690 V IEC 60947-1 |
| Fuse Amps | 10 A (Control Circuit), 100 A (Type 1 and 2 Power Circuit) |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Switching Current | 5 mA (Control Circuit) |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Product Certifications | GL; UL; RINA; GOST; CSA; LROS (Lloyds register of shipping); CCC; DNV; BV; UKCA |
| Shock Resistance | 10 G (Contactor Closed), 8 G (Contactor Open) |
| Application | Motor Control |
| Mechanical Durability | 6 Mcycles |
| Operating Altitude | 9842.52 ft (3000 m) without derating |
| Insulation Resistance Range | Greater Than 10 Mohms (Control Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free |
| Poles Description | 3P |
| Rated Operational Current | Power circuit 50 A AC AC-3 140°F (60°C)) |
| Overvoltage Category | CAT III |
| Rated Making Capacity | 140 A (AC Control Circuit), 900 A @ 440V (Power Circuit) |
| Minimum Switching Voltage | 17 V for control circuit |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for control circuit; 80 A (at 140°F (60°C)) for power circuit |
| Features | Without Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Impulse Withstand Voltage | 6 kV |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Inrush VA | 200 to 220 VA |
| Switching Voltage | 17 V (Control Circuit) |
| Control Circuit Voltage Limits | Drop-Out: 0.3 to 0.6 Uc (at 60°C 50/60 Hz); Operational: 0.8 to 1.1 Uc (at 60°C 50 Hz), 0.85 to 1.1 Uc (at 60°C 60 Hz) |
| Flame Retardance | V1 conforming to UL 94 |
| Heat Dissipation | 6 to 10 W at 50/60 Hz for control circuit |
| Control Circuit Voltage | 120 V AC 60 Hz |
| Protective Treatment | TH 3IEC 60068 |
| Interlocking Type | Mechanical |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Working Height | 9,842.52 ft |
| Utilisation Category | AC-2; AC-3; AC-4 |
| Rated Breaking Capacity | 900 A @ 440V |
| Includes Protective Cover | Yes |
| Average Impedance | 80 A 50 Hz for power circuit |
| Power Dissipation Per Pole | 3.7 W AC-3 - Ith 80 A |
| Control Circuit Type | AC |
| Fire Rating | UL 94 V1 |
| Operating Time | 12 to 26 ms (Closing), 4 to 19 ms (Opening) |
| Rated Operational Voltage | Power circuit Less than or Equal to 1000 V AC 25 to 400 Hz |
| Coil Type | Standard |
| Inrush Power in VA | 200 VA cos phi 0.75 (at 68°F (20°C)); 220 VA cos phi 0.75 (at 68°F (20°C)) |
| Max. Temperature | 850°C |
| Ambient Air Temperature For Operation | 23 to 140°F (-5 to 60°C) |
| Protective Cover | With |
| Non-Overlap Time | 1.5 msec |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Hold-In Power Consumption in VA | 20 VA 50 Hz cos phi 0.3 (at 68°F (20°C)); 22 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 26 VA 50 Hz cos phi 0.3 (at 68°F (20°C)); 26 VA 60 Hz cos phi 0.3 (at 68°F (20°C)) |
| Connections - Terminals | Control circuit 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Control circuit 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit 1 0.00 to 0.01 in² (1 to 4 mm²)solid without cable end; Control circuit 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Control circuit 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit 2 0.00 to 0.01 in² (1 to 4 mm²)solid without cable end; Power circuit 1 0.00 to 0.05 in² (1 to 35 mm²)flexible with cable end; Power circuit 1 0.00 to 0.05 in² (1 to 35 mm²)flexible without cable end; Power circuit 1 0.00 to 0.05 in² (1 to 35 mm²)solid without cable end; Power circuit 2 0.00 to 0.04 in² (1 to 25 mm²)flexible with cable end; Power circuit 2 0.00 to 0.04 in² (1 to 25 mm²)flexible without cable end; Power circuit 2 0.00 to 0.04 in² (1 to 25 mm²)solid without cable end; Power circuit 2 0.00 to 0.05 in² (1 to 35 mm²)flexible with cable end; Power circuit 2 0.00 to 0.05 in² (1 to 35 mm²)flexible without cable end; Power circuit 2 0.00 to 0.05 in² (1 to 35 mm²)solid without cable end |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Watts Loss | 6 to 10W |
| Hold VA | 20 to 26 VA (at 50 Hz 20°C), 22 to 26 VA (at 60 Hz 20°C) |
| Mounts On | Plate, Rail |
| Insulation Resistance | Greater than 10 MOhm for control circuit |
| Pole Contact Composition | 3 NO |
| Minimum Switching Current | 5 mA (for control circuit) |
| Vibration Resistance | 3 G (Contactor Closed), 2 G (Contactor Open) |
| Thermal Amperage | 10 A (at 60°C Control Circuit), 80 A (at 60°C Power Circuit) |
| Ambient Air Temperature For Storage | -76 to 176°F |
| Net Weight | 2.4 kg |
| Max. Operating Watts | 15 kW (at 220 to 240V AC 50/60 Hz), 22 kW (at 380 to 400V AC 50/60 Hz), 25 kW (at 415V AC 50/60 Hz), 30 kW (at 440V AC 50/60 Hz), 30 kW (at 500V AC 50/60 Hz), 33 kW (at 660 to 690V AC 50/60 Hz) |
| Associated Fuse Rating | 10 A gG for control circuit conforming to IEC 60947-5-1; 100 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 100 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Rated Insulation Volts | 600/690V |
| Coil Technology | Without built-in bidirectional peak limiting diode suppressor |
| Mounting Support | Rail, Plate |
| Permissible Ambient Air Temperature Around The Device | -40 to 158°F (-40 to 70°C) at Uc |
| Assembly Style | Ready assembled |
| Product Or Component Type | Reversing contactor |
| Operating Speed | 3600 cycles per hr |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| IRMS Rated Making Capacity | 140 A AC for control circuit conforming to IEC 60947-5-1; 900 A at 440 V for power circuit conforming to IEC 60947 |
| Package Quantity | 1 |
