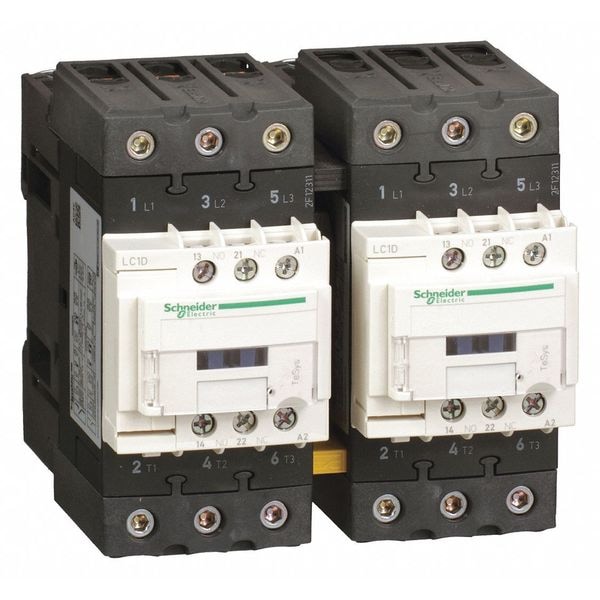

Contacto magnético IEC, 3 polos, 120 V CA, 65 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 65 A |
| Action | Reversing |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| HP @ 1 Phase - 240V | 10 hp |
| Height | 122 mm |
| HP @ 3 Phase - 208V | 20 hp |
| Width | 119 mm |
| Depth | 120 mm |
| HP @ 3 Phase - 240V | 20 hp |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 3 Phase - 480V | 40 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Series | LC2D |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, CSA, RINA, GOST, CCC, DNV, LROS, GL, BV, UKCA, TH IEC 60068-2-30 |
| Impedance | 1.5 mOhm |
| Mounts On | Plate, Rail |
| Fire Rating | UL 94 V1 |
| Mechanical Durability | 6 Mcycles |
| Switching Current | 5 mA (Signalling Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Rated Voltage | 690V AC, 300V DC |
| Max. Temperature | 850°C |
| Net Weight | 1.89 kg |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 60 Hz) , Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 60 Hz) |
| Inrush VA | 140 VA |
| Electrical Durability | 1.45 Mcycles (65 A, AC-3, Less than 440 V); 1.4 Mcycles (80 A, AC-1, Less than 440 V) |
| Application | Motor Control, Resistive Load |
| Impulse Withstand Voltage | 6 kV |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Includes Protective Cover | Yes |
| Hold VA | 13 VA |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Watts Loss | 4 to 5W |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| IP Rating | IP20 |
| Operating Speed | 3600 cycles per hr |
| Fuse Amps | 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit) |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Rated Short-Time Withstand Current | 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Rated Breaking Capacity | 1000 A @ 440V |
| Rated Insulation Volts | 600/690V |
| Working Height | Up to 9,842.52 ft |
| Max. Operating Watts | 18.5 kW (at 220 to 230V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz), 37 kW (at 415 to 440V AC 50 Hz), 37 kW (at 500V AC 50 Hz), 37 kW (at 660 to 690V AC 50 Hz) |
| Operating Time | 4 to 19 ms (Opening), 12 to 26 ms (Closing) |
| Non-Overlap Time | 1.5 msec |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit) |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Overvoltage Category | CAT III |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit) |
| Package Quantity | 1 |
