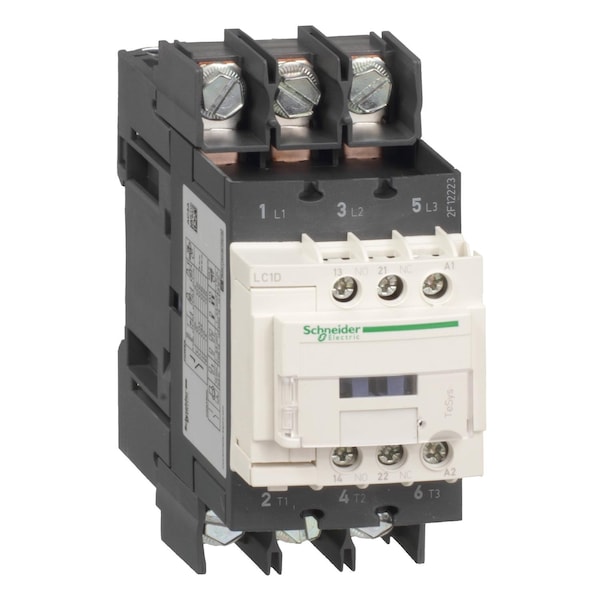

Contacto magnético IEC, 3 polos, 125 V CC, 40 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 40 A |
| Full Load Amps-Resistive | 60 A |
| Number of Poles | 3 |
| Coil Volts | 125 V DC |
| HP @ 1 Phase - 240V | 5 hp |
| Height | 122 mm |
| Width | 55 mm |
| HP @ 3 Phase - 208V | 10 hp |
| Depth | 120 mm |
| HP @ 3 Phase - 575V | 30 hp |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 480V | 30 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Includes | Everlink Power Connections |
| Series | LC1D |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, CSA, UL, CCC, GOST, THIEC 60068-2-30 |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Application | Motor Control, Resistive Load |
| Impedance | 1.5 mOhm |
| Mechanical Durability | 10 Mcycles |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Electrical Durability | 0.7 Mcycles (60 A, AC-1, Less than 440 V); 1.5 Mcycles (40 A, AC-3, Less than 440 V); 1.5 Mcycles (40 A, AC-3e, Less than 440 V) |
| Max. Operating Watts | 18.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 11 kW (at 220 to 230V AC 50/60 Hz AC-3), 22 kW (at 415 to 440V AC 50/60 Hz AC-3), 22 kW (at 500V AC 50/60 Hz AC-3), 30 kW (at 660 to 690V AC 50/60 Hz AC-3), 9 kW (at 400V AC 50/60 Hz AC-4), 18.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 11 kW (at 220 to 230V AC 50/60 Hz AC-3e), 22 kW (at 415 to 440V AC 50/60 Hz AC-3e), 22 kW (at 500V AC 50/60 Hz AC-3e), 30 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Includes Protective Cover | Yes |
| Shock Resistance | 10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Rated Insulation Volts | 600/690V |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Fire Rating | UL 94 V1 |
| Control Circuit Voltage Limits | Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70°C); Operational DC: 0.75 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C) |
| Switching Current | 5 mA (Signalling Circuit) |
| Operating Speed | 3600 cycles per hr |
| Rated Breaking Capacity | 800 A @ 440V |
| Switching Voltage | 17 V (Signalling Circuit) |
| Electrical Connection | Lugs-Ring Terminals |
| Max. Temperature | 850°C |
| Rated Short-Time Withstand Current | 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Operating Time | 42.5 to 57.5 ms (Closing), 16 to 24 ms (Opening) |
| Net Weight | 0.925 kg |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit) |
| Non-Overlap Time | 1.5 msec |
| Environmental Attributes | Mercury Free, PVC Free, Pollution Degree 3 |
| Impulse Withstand Voltage | 6 kV |
| Working Height | Up to 9,842.52 ft |
| Overvoltage Category | CAT III |
| Rated Voltage | 690V AC, 300V DC |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 to 6 Nm (Power Circuit) |
| Mounts On | Plate, Rail |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit) |
| IP Rating | IP20 |
| Fuse Amps | 10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit) |
| Package Quantity | 1 |
