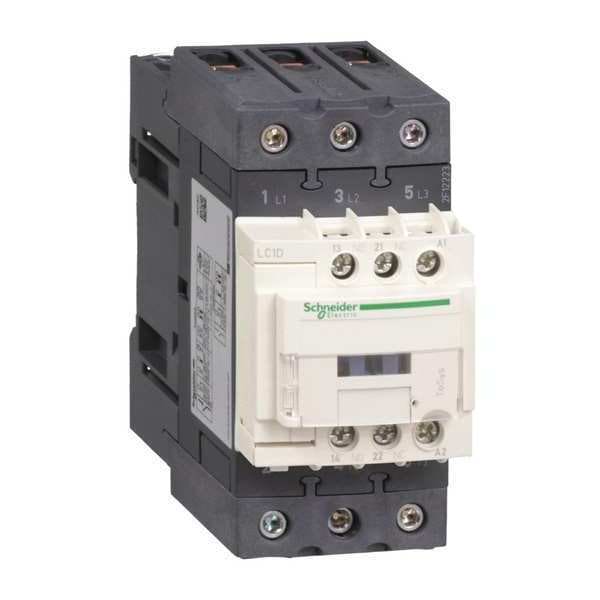

Contacto magnético IEC, 3 polos, 220 V CA, 65 A.
| Full Load Amps-Inductive | 65 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 220 V AC |
| HP @ 1 Phase - 240V | 10 hp |
| Height | 122 mm |
| HP @ 3 Phase - 208V | 20 hp |
| Width | 55 mm |
| HP @ 3 Phase - 240V | 20 hp |
| Depth | 120 mm |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 3 Phase - 480V | 40 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Series | LC1D |
| Includes | Everlink Power Connections |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, CCC, GOST, CSA, THIEC 60068-2-30 |
| Features | Without Built-In Suppressor Module |
| IP Rating | IP20 |
| Non-Overlap Time | 1.5 msec |
| Operating Speed | 3600 cycles per hr |
| Rated Insulation Volts | 600/690V |
| Impedance | 1.5 mOhm |
| Mounts On | Plate, Rail |
| Rated Voltage | 690V AC, 300V DC |
| Watts Loss | 4 to 5W |
| Switching Voltage | 17 V (Signalling Circuit) |
| Includes Protective Cover | Yes |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit) |
| Impulse Withstand Voltage | 6 kV |
| Fire Rating | UL 94 V1 |
| Switching Current | 5 mA (Signalling Circuit) |
| Hold VA | 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C) |
| Rated Short-Time Withstand Current | 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Fuse Amps | 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit) |
| Application | Motor Control, Resistive Load |
| Rated Breaking Capacity | 1000 A @ 440V |
| Inrush VA | 140 VA (at 60 Hz 20°C), 160 VA (at 50 Hz 20°C) |
| Net Weight | 0.86 kg |
| Max. Temperature | 850°C |
| Mechanical Durability | 6 Mcycles |
| Max. Operating Watts | 11 kW (at 400V AC 50/60 Hz AC-4), 18.5 kW (at 220 to 230V AC 50/60 Hz AC-3), 30 kW (at 380 to 400V AC 50/60 Hz AC-3), 37 kW (at 500V AC 50/60 Hz AC-3), 37 kW (at 660 to 690V AC 50/60 Hz AC-3), 18.5 kW (at 220 to 230V AC 50/60 Hz AC-3e), 30 kW (at 380 to 400V AC 50/60 Hz AC-3e), 37 kW (at 500V AC 50/60 Hz AC-3e), 37 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Working Height | Up to 9,842.52 ft |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Shock Resistance | 10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Operating Time | 4 to 19 ms (Opening), 12 to 26 ms (Closing) |
| Electrical Durability | 1.4 Mcycles (80 A, AC-1, Less than 440 V); 1.45 Mcycles (65 A, AC-3, Less than 440 V); 1.45 Mcycles (65 A, AC-3e, Less than 440 V) |
| Overvoltage Category | CAT III |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Rated Operational Current | 80 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 65 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 65 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit |
| Protective Cover | With |
| Contact Compatibility | M2 |
| Inrush Power in VA | 140 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 160 VA 50 Hz cos phi 0.75 (at 68°F (20°C)) |
| Mounting Support | Rail |
| Contactor Application | Motor control Resistive load |
| Flame Retardance | V1 conforming to UL 94 |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 125 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 125 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 80 A (at 140°F (60°C)) for power circuit |
| Poles Description | 3P |
| Connections - Terminals | Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Power circuit: EverLink BTR screw connectors 1 0.00 to 0.05 in² (1 to 35 mm²) - cable stiffness: flexible without cable end; Power circuit: EverLink BTR screw connectors 2 0.00 to 0.04 in² (1 to 25 mm²) - cable stiffness: flexible without cable end; Power circuit: EverLink BTR screw connectors 1 0.00 to 0.05 in² (1 to 35 mm²) - cable stiffness: flexible with cable end; Power circuit: EverLink BTR screw connectors 2 0.00 to 0.04 in² (1 to 25 mm²) - cable stiffness: flexible with cable end; Power circuit: EverLink BTR screw connectors 1 0.00 to 0.05 in² (1 to 35 mm²) - cable stiffness: solid without cable end; Power circuit: EverLink BTR screw connectors 2 0.00 to 0.04 in² (1 to 25 mm²) - cable stiffness: solid without cable end |
| Power Dissipation Per Pole | 9.6 W AC-1; 6.3 W AC-3; 6.3 W AC-3e |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Rated Insulation Voltage | Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL; Power circuit 690 V IEC 60947-4-1 |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Hold-In Power Consumption in VA | 13 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 15 VA 50 Hz cos phi 0.3 (at 68°F (20°C)) |
| IRMS Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 1000 A at 440 V for power circuit conforming to IEC 60947 |
| Product Certifications | UL; CCC; GOST; CSA |
| Permissible Ambient Air Temperature Around The Device | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Protective Treatment | THIEC 60068-2-30 |
| Control Circuit Voltage | 220 V AC 50/60 Hz |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Product Or Component Type | Contactor |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Pollution Degree | 3 |
| Climatic Withstand | IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat |
| Motor Power KW | 11 kW at 400 V AC 50/60 Hz (AC-4); 18.5 kW at 220 to 230 V AC 50/60 Hz (AC-3); 30 kW at 380 to 400 V AC 50/60 Hz (AC-3); 37 kW at 500 V AC 50/60 Hz (AC-3); 37 kW at 660 to 690 V AC 50/60 Hz (AC-3); 18.5 kW at 220 to 230 V AC 50/60 Hz (AC-3e); 30 kW at 380 to 400 V AC 50/60 Hz (AC-3e); 37 kW at 500 V AC 50/60 Hz (AC-3e); 37 kW at 660 to 690 V AC 50/60 Hz (AC-3e) |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Heat Dissipation | 4 to 5 W at 50/60 Hz |
| Rated Short Time Withstand Current | 640 A 104°F (40°C) - 10 s for power circuit; 900 A 104°F (40°C) - 1 s for power circuit; 110 A 104°F (40°C) - 10 min for power circuit; 260 A 104°F (40°C) - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Mechanical Robustness | Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 10 Gn for 11 ms) |
| Pole Contact Composition | 3 NO |
| Average Impedance | 1.5 mOhm - Ith 80 A 50 Hz for power circuit |
| Control Circuit Type | AC 50/60 Hz standard |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Utilisation Category | AC-4; AC-1; AC-3; AC-3e |
| Maximum Horse Power Rating | 40 hp at 460/480 V AC 50/60 Hz for 3 phase motors; 5 hp at 115 V AC 50/60 Hz for 1 phase motors; 10 hp at 230/240 V AC 50/60 Hz for 1 phase motors; 20 hp at 200/208 V AC 50/60 Hz for 3 phase motors; 20 hp at 230/240 V AC 50/60 Hz for 3 phase motors; 50 hp at 575/600 V AC 50/60 Hz for 3 phase motors |
| Package Quantity | 1 |
