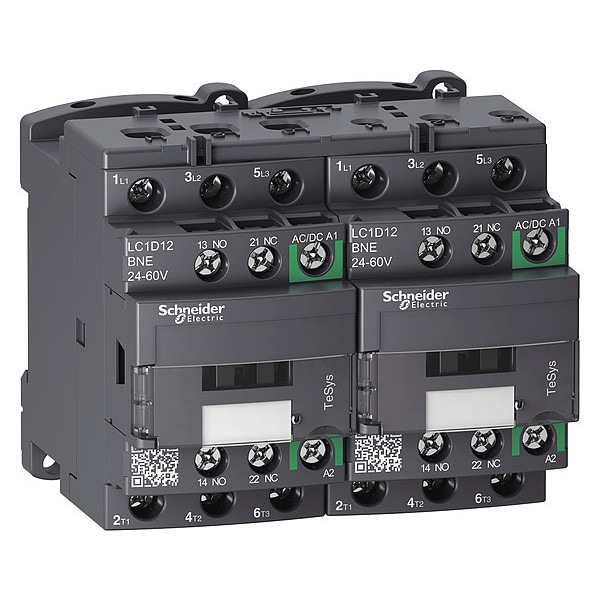

Contacto magnético IEC, 3 polos, 24 a 60 V CA/CC, 12 A, Reversión: Sí
| Full Load Amps-Inductive | 12 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 25 A |
| Number of Poles | 3 |
| Coil Volts | 24 to 60 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 1/2 hp |
| Height | 3.03 in |
| HP @ 1 Phase - 240V | 2 hp |
| HP @ 3 Phase - 208V | 3 hp |
| Width | 3.54 in |
| HP @ 3 Phase - 575V | 10 hp |
| HP @ 3 Phase - 240V | 3 hp |
| Depth | 3.38 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 7 1/2 hp |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Frame / Series / Class / Code | TeSys |
| Auxiliary Contact Form | 1NO/1NC |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| IP Rating | IP20 |
| Number of Normally Open Main Contacts | 3 |
| Overall Height | 3.03 in |
| Maximum Voltage Rating | 690 V AC |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Contactor Style | IEC |
| Terminal Connection Type | Screw Clamp Terminals |
| Reversing Capability | Reversing |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Number of Auxillary Contacts | 2 |
| Horsepower @ Single Phase - 120V AC | 0.5 HP |
| Embedded Surge Suppressor | No |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Coil Voltage | 24-60V AC/DC |
| Overall Width | 3.54 in |
| Horsepower @ Three Phase - 480V AC | 7.5 HP |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Full Load Current - Resistive | 25 A |
| NEMA Enclosure Material | Not Applicable |
| Includes Auxiliary Contacts | Yes |
| Mounting Style | DIN Rail, Plate |
| Overall Depth | 3.39 in |
| Minimum Operating Temperature | -40 deg F |
| Electrical Operating Durability | 2,300,000, 800,000 |
| Maximum Operating Temperature | 140 deg F |
| Mechanical Operating Durability | 15,000,000 |
| Full Load Current - Inductive | 12 A |
| Operating Time | 45 to 55 ms (Closing), 20 to 90 ms (Opening) |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Fire Rating | UL 94 V1 |
| Inrush VA | 15 VA |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Includes Protective Cover | Yes |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Rated Making Capacity | 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Hold VA | 0.9 VA |
| Max. Operating Watts | 3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415V AC 50 Hz), 5.5 kW (at 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Max. Temperature | 850°C |
| Electrical Durability | 2.3 Mcycles (11 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V) |
| Rated Insulation Volts | 690V |
| Electrical Connection | Screw Clamp Terminals |
| Net Weight | 0.793 kg |
| Operating Speed | 3600 cycles per hr |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Rated Voltage | 690V AC |
| Non-Overlap Time | 1.5 msec |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Working Height | Up to 9,842.52 ft |
| Rated Breaking Capacity | 250 A @ 440V |
| Watts Loss | 0.6W |
| Application | Motor Control, Resistive Load |
| Rated Short-Time Withstand Current | 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Tightening Torque | 1.7 Nm |
| Overvoltage Category | CAT III |
| Impulse Withstand Voltage | 6 kV |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit) |
| Impedance | 2.5 mOhm |
| Mechanical Durability | 15 Mcycles |
| Fuse Amps | 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit) |
| Mounts On | Plate, Rail |
| Switching Current | 5 mA (Signalling Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Package Quantity | 1 |
